153214-2020-RB
153214-2020-RB
153214-2020-RB
Favorite Products
Share:

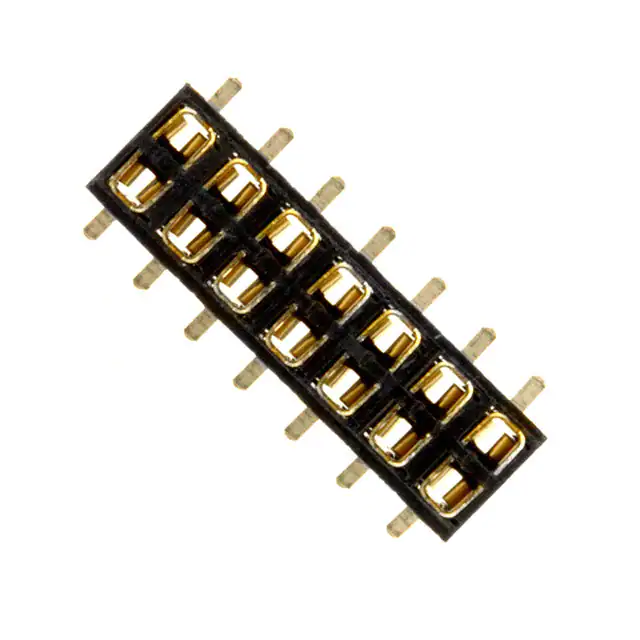

153214-2020-RB

153214-2020-RB
3M
CONN RCPT 14POS 0.079 GOLD SMD
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Insulation Color
Black
Contact Finish - Post
Tin
Mated Stacking Heights
-
Material Flammability Rating
UL94 V-0
Voltage Rating
500VDC
Series
1532
Features
Board Guide
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Base Product Number
153214
Mounting Type
Surface Mount
Contact Finish - Mating
Gold
Package
Bulk
Ingress Protection
-
Current Rating (Amps)
1A
Mfr
3M
Connector Type
Receptacle, Bottom or Top Entry
Style
Board to Board or Cable
Number of Positions
14
Number of Positions Loaded
All
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Length - Post
-
Operating Temperature
-55°C ~ 105°C
Contact Type
Female Socket
Pitch - Mating
0.079" (2.00mm)
Insulation Height
0.129" (3.28mm)
Number of Rows
2
Termination
Solder
Contact Material
Copper Alloy
Fastening Type
Push-Pull
Applications
-
Product Status
Obsolete
Contact Shape
Square
Contact Finish Thickness - Post
-
