15520122701000
15520122701000
Favorite Products
Share:

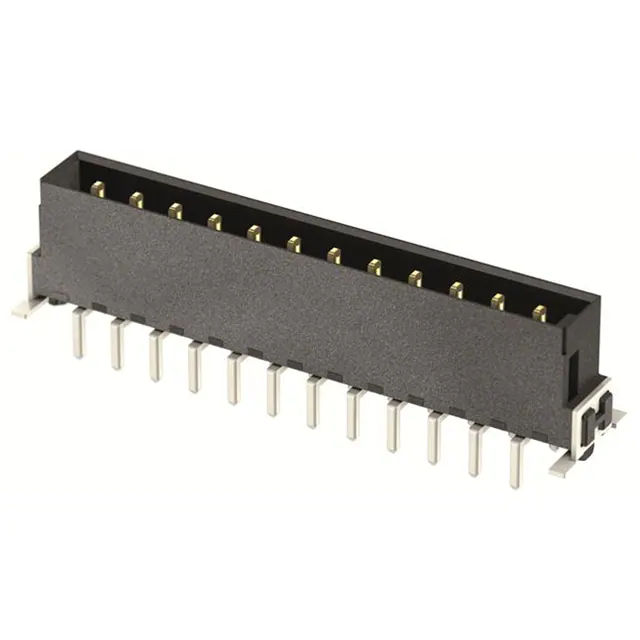

15520122701000

15520122701000
HARTING
HAR-FLEX POWER STRAIGHT MALE, 3.
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Connector Type
Header
Insulation Height
0.319" (8.10mm)
Mated Stacking Heights
-
Contact Material
Copper Alloy
Insulation Material
Liquid Crystal Polymer (LCP)
Voltage Rating
180V
Product Status
Active
Termination
Solder
Features
Board Guide, Pick and Place, Solder Retention
Applications
-
Mfr
HARTING
Series
har-flex®
Contact Shape
Rectangular
Material Flammability Rating
UL94 V-0
Number of Rows
1
Number of Positions Loaded
All
Mounting Type
Through Hole
Number of Positions
12
Row Spacing - Mating
-
Style
Board to Board or Cable
Contact Finish - Mating
Gold
Insulation Color
Black
Current Rating (Amps)
19A
Fastening Type
Push-Pull
Package
Tape & Reel (TR)^^Cut Tape (CT)
Contact Length - Mating
0.181" (4.60mm)
Contact Length - Post
0.098" (2.50mm)
Ingress Protection
-
Contact Type
Male Pin
Pitch - Mating
0.100" (2.54mm)
Contact Finish Thickness - Mating
-
Contact Finish - Post
Tin
Contact Finish Thickness - Post
-
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Operating Temperature
-55°C ~ 125°C
