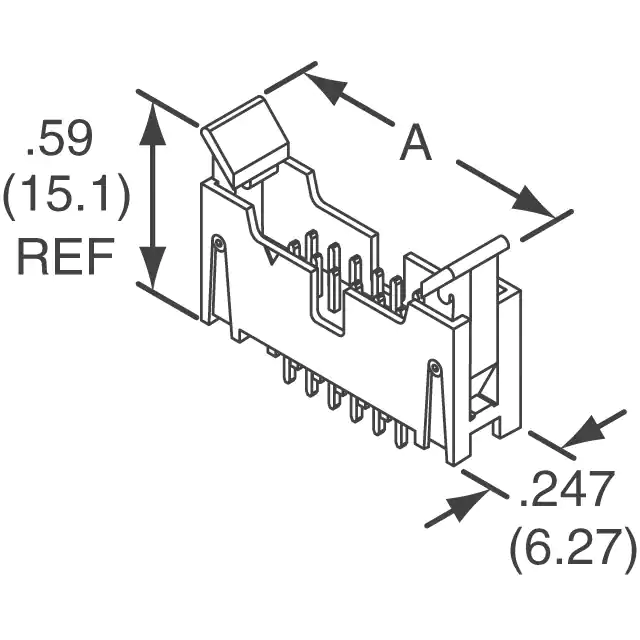

155212-6302-RB
155212-6302-RB
155212-6302-RB
155212-6302-RB
Favorite Products
Share:

155212-6302-RB

155212-6302-RB
3M
CONN HEADER VERT 12POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Shape
Square
Contact Length - Mating
0.150" (3.81mm)
Operating Temperature
-55°C ~ 105°C
Applications
-
Package
Tray
Termination
Solder
Material Flammability Rating
UL94 V-0
Voltage Rating
-
Mfr
3M
Connector Type
Header
Fastening Type
Latch Lock/Eject Hooks
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Series
1552
Ingress Protection
-
Features
Keying Slot
Number of Positions
12
Number of Rows
2
Number of Positions Loaded
All
Contact Length - Post
0.112" (2.84mm)
Row Spacing - Mating
0.079" (2.00mm)
Shrouding
Shrouded - 4 Wall
Mounting Type
Through Hole
Contact Finish - Mating
Gold
Contact Finish - Post
Tin
Contact Material
Copper Alloy
Insulation Color
Black
Mated Stacking Heights
-
Current Rating (Amps)
1.25A
Base Product Number
155212
Style
Board to Cable/Wire
Product Status
Active
Contact Type
Male Pin
Pitch - Mating
0.079" (2.00mm)
Overall Contact Length
-
Insulation Height
0.425" (10.80mm)
Contact Finish Thickness - Post
200.0µin (5.08µm)
Related Products
1-499160-0

TE Connectivity AMP Connectors
88886-452HLF

Amphenol ICC (FCI)
FTSH-105-01-LM-DH-A-C

Samtec Inc.
FTSH-105-02-LM-DV-P

Samtec Inc.
TMM-140-01-L-S-RA-023

Samtec Inc.

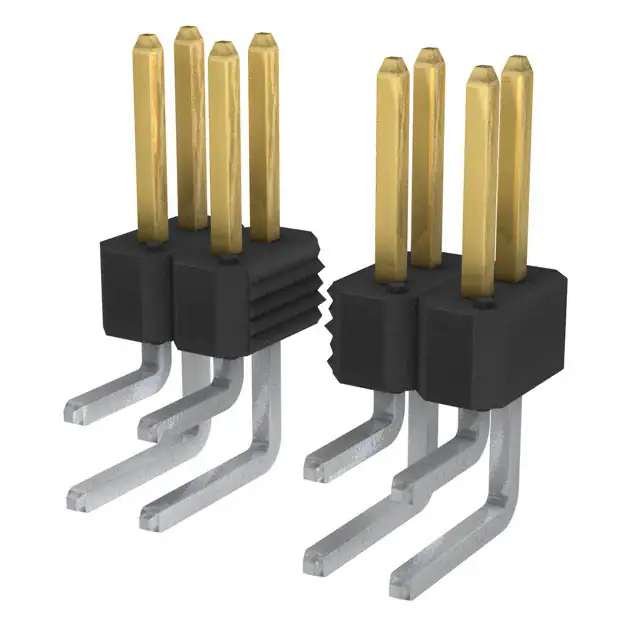

77317-803-60LF
