159108-5012
159108-5012
Favorite Products
Share:

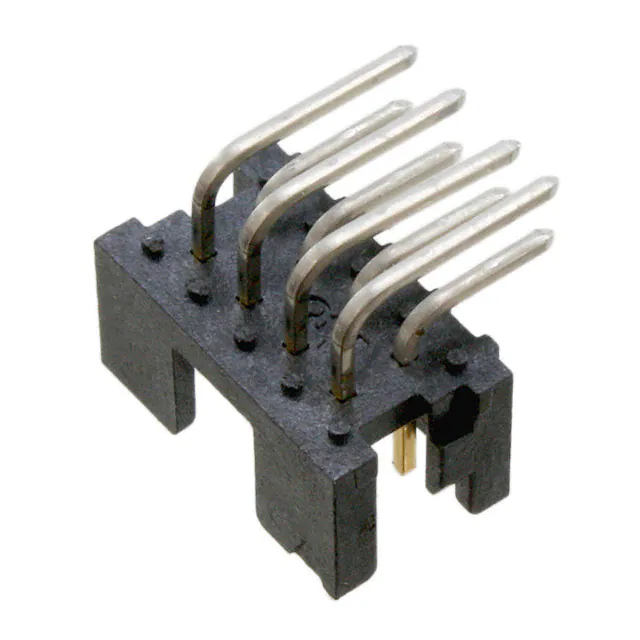

159108-5012

159108-5012
3M
CONN HEADER R/A 8POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish - Mating
Gold
Applications
-
Contact Length - Post
0.112" (2.84mm)
Package
Tray
Contact Material
Copper Alloy
Insulation Color
Black
Current Rating (Amps)
1.25A
Series
159
Number of Positions
8
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
0.142" (3.61mm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Voltage Rating
150V
Mfr
3M
Number of Positions Loaded
All
Insulation Height
0.241" (6.13mm)
Contact Shape
Square
Mated Stacking Heights
-
Connector Type
Header
Fastening Type
Push-Pull
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Ingress Protection
-
Contact Finish Thickness - Post
200.0µin (5.08µm)
Contact Type
Male Pin
Pitch - Mating
0.079" (2.00mm)
Material Flammability Rating
UL94 V-0
Base Product Number
159108
Mounting Type
Through Hole, Right Angle
Termination
Solder
Contact Finish - Post
Tin
Product Status
Obsolete
Style
Board to Cable/Wire
Overall Contact Length
-
Number of Rows
2
Row Spacing - Mating
0.079" (2.00mm)
Features
Keying Slot
Operating Temperature
-55°C ~ 105°C
