159120-5002
159120-5002
Favorite Products
Share:

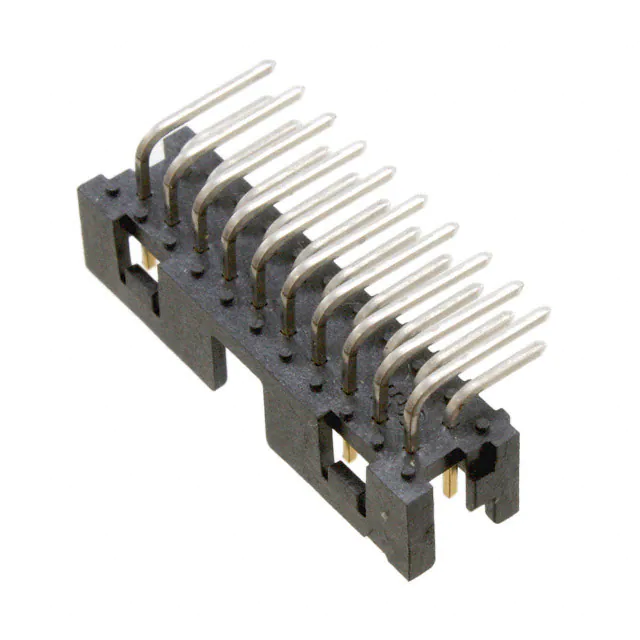

159120-5002

159120-5002
3M
CONN HEADER R/A 20POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Shrouding
Shrouded - 4 Wall
Fastening Type
Detent Lock
Insulation Height
0.241" (6.13mm)
Contact Shape
Square
Contact Material
Copper Alloy
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Voltage Rating
150V
Contact Finish Thickness - Post
200.0µin (5.08µm)
Mfr
3M
Series
159
Package
Tray
Number of Positions
20
Number of Rows
2
Features
Keying Slot
Mated Stacking Heights
-
Product Status
Obsolete
Mounting Type
Through Hole, Right Angle
Overall Contact Length
-
Material Flammability Rating
UL94 V-0
Pitch - Mating
0.079" (2.00mm)
Number of Positions Loaded
All
Contact Finish - Mating
Gold
Contact Finish - Post
Tin
Operating Temperature
-55°C ~ 105°C
Current Rating (Amps)
1.25A
Contact Type
Male Pin
Row Spacing - Mating
0.079" (2.00mm)
Contact Length - Mating
0.142" (3.61mm)
Insulation Color
Black
Applications
-
Base Product Number
159120
Style
Board to Cable/Wire
Termination
Solder
Contact Length - Post
0.112" (2.84mm)
Connector Type
Header
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Ingress Protection
-
