1622230000
1622230000
Favorite Products
Share:

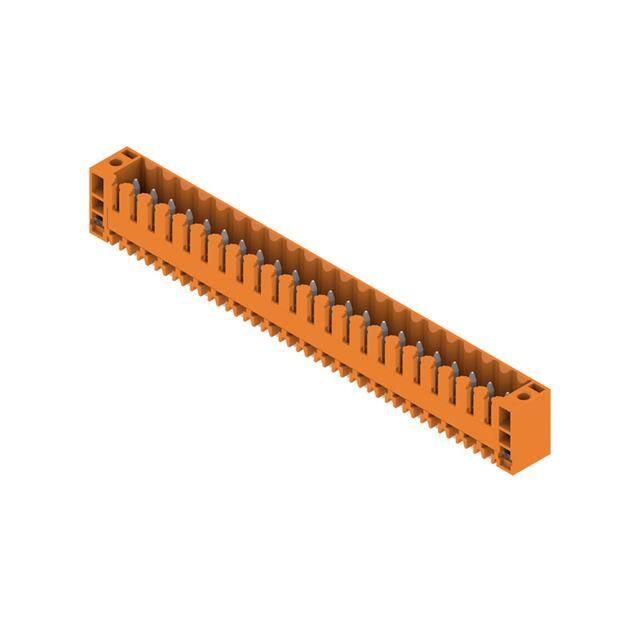

1622230000

1622230000
Weidmüller
TERM BLOCK HDR 22POS VERT 3.5MM
Headers, Plugs and Sockets
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Torque - Screw
-
Product Status
Active
Package
Bulk
Voltage - UL
300 V
Contact Material
Copper Alloy
Type
Header, Male Pins, Shrouded (4 Side)
Wire Gauge or Range - mm²
-
Contact Tail Length
0.126" (3.20mm)
Termination Style
Solder
Screw Size
-
Mounting Type
Through Hole
Contact Mating Finish
Tin
Housing Material
Polybutylene Terephthalate (PBT)
Plug Wire Entry
-
Wire Gauge or Range - AWG
-
Operating Temperature
-50°C ~ 100°C
Features
Mating and Mounting Flange
Material Flammability Rating
UL94 V-0
Number of Positions
22
Current - IEC
17A
Voltage - IEC
320 V
Current - UL
10 A
Color
Orange
Insulation Height
0.437" (11.10mm)
Mfr
Weidmüller
Pitch
0.138" (3.50mm)
Ingress Protection
IP10
Positions Per Level
22
Number of Levels
1
Series
Omnimate SL
Header Orientation
Vertical
Wire Strip Length
-
