1718561004
1718561004
1718561004
Favorite Products
Share:

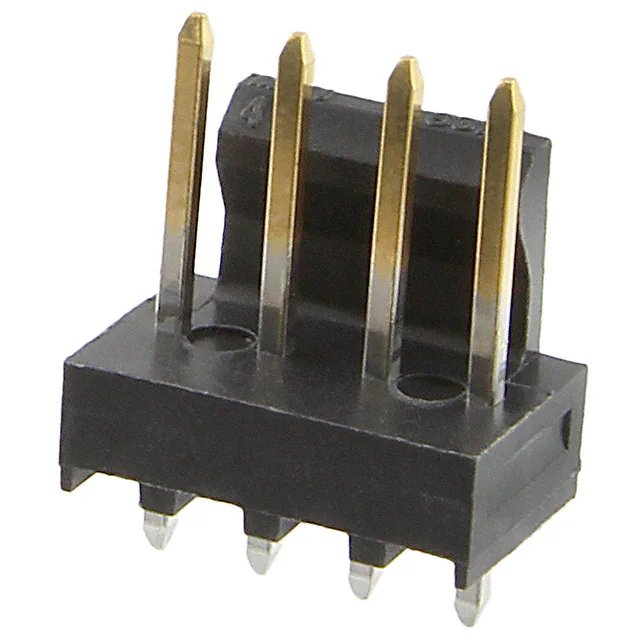

1718561004

1718561004
Molex
CONN HEADER VERT 4POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Style
Board to Board or Cable
Material Flammability Rating
UL94 V-2
Product Status
Active
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Overall Contact Length
0.510" (12.95mm)
Connector Type
Header
Contact Type
Male Pin
Pitch - Mating
0.100" (2.54mm)
Mounting Type
Through Hole
Fastening Type
Friction Lock
Voltage Rating
-
Number of Positions
4
Number of Rows
1
Contact Finish - Post
Tin
Operating Temperature
-
Current Rating (Amps)
-
Row Spacing - Mating
-
Number of Positions Loaded
All
Features
-
Ingress Protection
-
Contact Finish - Mating
Gold
Contact Finish Thickness - Post
100.0µin (2.54µm)
Base Product Number
171856
Mfr
Molex
Contact Length - Mating
0.293" (7.45mm)
Insulation Material
Polyamide (PA), Nylon
Package
Bulk
Insulation Height
0.322" (8.18mm)
Contact Length - Post
0.092" (2.34mm)
Series
KK254, 171856
Termination
Solder
Contact Material
Brass
Mated Stacking Heights
-
Applications
Automotive, General Purpose, Medical, Telecommunications
Shrouding
Shrouded - 1 Wall
Contact Shape
Square
Insulation Color
Black
