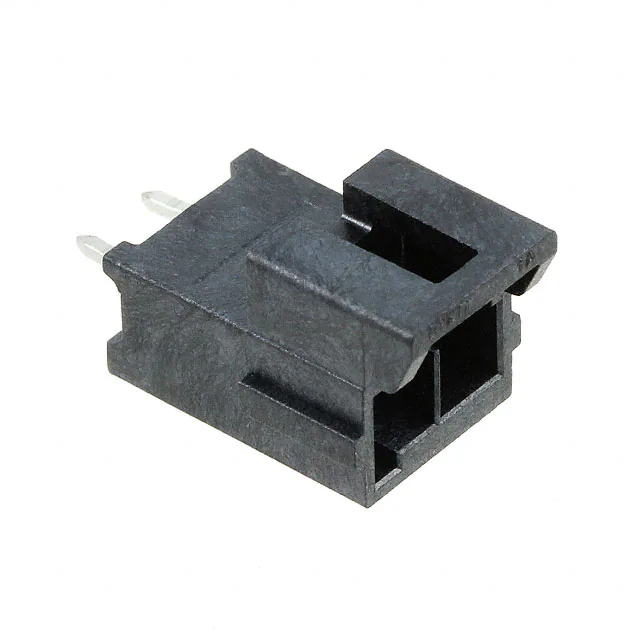

1722861202

1722861202
Molex
CONN HEADER VERT 2POS 3.5MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Style
Board to Board or Cable
Features
Board Guide
Number of Positions
2
Insulation Height
0.465" (11.80mm)
Shrouding
Shrouded - 4 Wall
Operating Temperature
-40°C ~ 120°C
Voltage Rating
600V
Current Rating (Amps)
-
Insulation Material
Liquid Crystal Polymer (LCP)
Mfr
Molex
Product Status
Active
Contact Type
Male Pin
Pitch - Mating
0.138" (3.50mm)
Termination
Kinked Pin, Solder
Fastening Type
Latch Holder
Contact Length - Mating
-
Contact Length - Post
0.126" (3.20mm)
Contact Shape
Square
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Series
Ultra-Fit 172286
Package
Tray
Number of Rows
1
Overall Contact Length
-
Contact Material
Copper Alloy
Applications
Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Connector Type
Header
Number of Positions Loaded
All
Mounting Type
Through Hole
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Insulation Color
Black
Contact Finish Thickness - Post
60.0µin (1.52µm)
Base Product Number
172286
Row Spacing - Mating
-
Contact Finish - Post
Tin
Mated Stacking Heights
26.99mm
