1722862203
1722862203
1722862203
Favorite Products
Share:

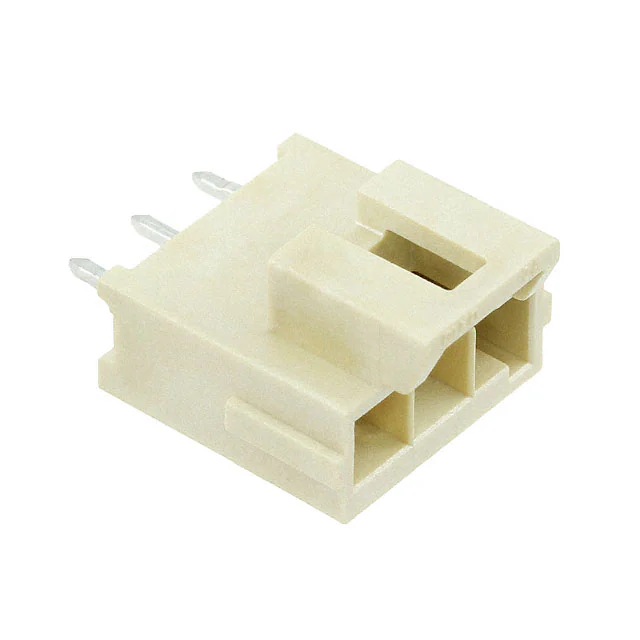

1722862203

1722862203
Molex
CONN HEADER VERT 3POS 3.5MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Length - Mating
-
Features
Board Guide
Insulation Color
Natural
Package
Bulk
Row Spacing - Mating
-
Connector Type
Header
Pitch - Mating
0.138" (3.50mm)
Mounting Type
Through Hole
Contact Finish - Mating
Gold
Applications
Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Mfr
Molex
Termination
Kinked Pin, Solder
Contact Type
Male Pin
Insulation Material
Liquid Crystal Polymer (LCP)
Contact Finish Thickness - Post
60.0µin (1.52µm)
Number of Positions
3
Shrouding
Shrouded - 4 Wall
Contact Finish - Post
Tin
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Contact Shape
Square
Mated Stacking Heights
26.99mm
Base Product Number
172286
Number of Rows
1
Contact Material
Copper Alloy
Series
Ultra-Fit 172286
Product Status
Active
Style
Board to Board or Cable
Operating Temperature
-40°C ~ 120°C
Current Rating (Amps)
-
Fastening Type
Latch Holder
Voltage Rating
600V
Number of Positions Loaded
All
Contact Length - Post
0.126" (3.20mm)
Overall Contact Length
-
Insulation Height
0.465" (11.80mm)
Contact Finish Thickness - Mating
15.0µin (0.38µm)
