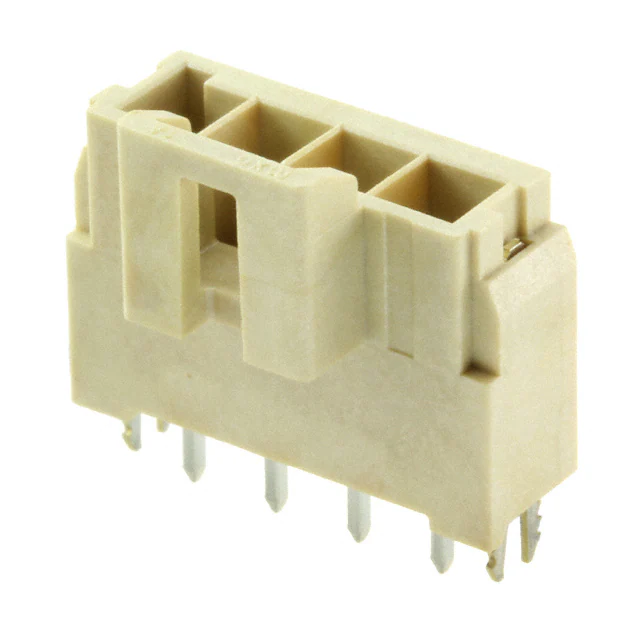

1722872204

1722872204
Molex
CONN HEADER VERT 4POS 3.5MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Series
Ultra-Fit 172287
Applications
Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Overall Contact Length
-
Contact Finish - Post
Tin
Termination
Solder
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Insulation Height
0.465" (11.80mm)
Contact Material
Copper Alloy
Pitch - Mating
0.138" (3.50mm)
Number of Positions
4
Features
Board Guide, Solder Retention
Product Status
Active
Insulation Material
Liquid Crystal Polymer (LCP)
Voltage Rating
400V
Mfr
Molex
Shrouding
Shrouded - 4 Wall
Base Product Number
172287
Contact Length - Post
0.126" (3.20mm)
Operating Temperature
-40°C ~ 120°C
Connector Type
Header
Contact Type
Male Pin
Mounting Type
Through Hole
Material Flammability Rating
UL94 V-0
Insulation Color
Natural
Current Rating (Amps)
-
Style
Board to Cable/Wire
Fastening Type
Latch Holder
Contact Shape
Square
Ingress Protection
-
Package
Bulk
Number of Rows
1
Row Spacing - Mating
-
Number of Positions Loaded
All
Contact Length - Mating
-
Mated Stacking Heights
26.99mm
Contact Finish Thickness - Post
60.0µin (1.52µm)
