1722872307

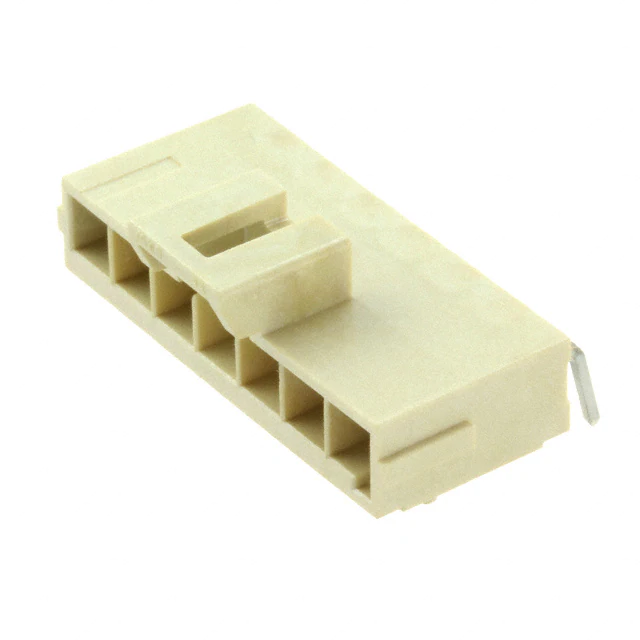

1722872307
Molex
CONN HEADER VERT 7POS 3.5MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Voltage Rating
400V
Number of Positions Loaded
All
Insulation Color
Natural
Overall Contact Length
-
Contact Finish - Post
Tin
Contact Finish Thickness - Post
60.0µin (1.52µm)
Connector Type
Header
Contact Length - Post
0.126" (3.20mm)
Insulation Height
0.465" (11.80mm)
Number of Rows
1
Contact Length - Mating
-
Contact Type
Male Pin
Termination
Solder
Insulation Material
Liquid Crystal Polymer (LCP)
Current Rating (Amps)
-
Mated Stacking Heights
26.99mm
Package
Bulk
Pitch - Mating
0.138" (3.50mm)
Contact Finish - Mating
Gold
Ingress Protection
-
Base Product Number
172287
Material Flammability Rating
UL94 V-0
Series
Ultra-Fit 172287
Contact Shape
Square
Operating Temperature
-40°C ~ 120°C
Mfr
Molex
Number of Positions
7
Row Spacing - Mating
-
Style
Board to Cable/Wire
Contact Material
Copper Alloy
Product Status
Active
Mounting Type
Through Hole
Fastening Type
Latch Holder
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Applications
Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Shrouding
Shrouded - 4 Wall
Features
Board Guide, Solder Retention
