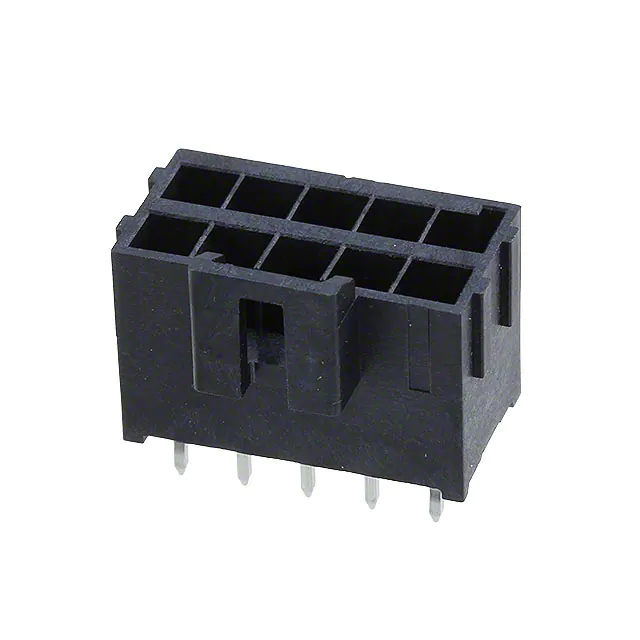

1722981210

1722981210
Molex
CONN HEADER VERT 10POS 3.5MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Insulation Height
0.465" (11.80mm)
Contact Type
Male Pin
Material Flammability Rating
UL94 V-0
Termination
Kinked Pin, Solder
Features
Board Guide
Contact Finish Thickness - Post
60.0µin (1.52µm)
Pitch - Mating
0.138" (3.50mm)
Number of Positions
10
Contact Finish - Mating
Gold
Current Rating (Amps)
-
Mated Stacking Heights
26.99mm
Style
Board to Cable/Wire
Contact Material
Copper Alloy
Package
Tray
Number of Rows
2
Operating Temperature
-40°C ~ 120°C
Series
Ultra-Fit 172298
Mounting Type
Through Hole
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Contact Finish - Post
Tin
Base Product Number
172298
Overall Contact Length
-
Mfr
Molex
Shrouding
Shrouded - 4 Wall
Ingress Protection
-
Row Spacing - Mating
0.181" (4.60mm)
Contact Shape
Square
Insulation Material
Liquid Crystal Polymer (LCP)
Insulation Color
Black
Applications
Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Product Status
Active
Connector Type
Header
Number of Positions Loaded
All
Fastening Type
Latch Holder
Contact Length - Mating
-
Contact Length - Post
0.126" (3.20mm)
Voltage Rating
400V
