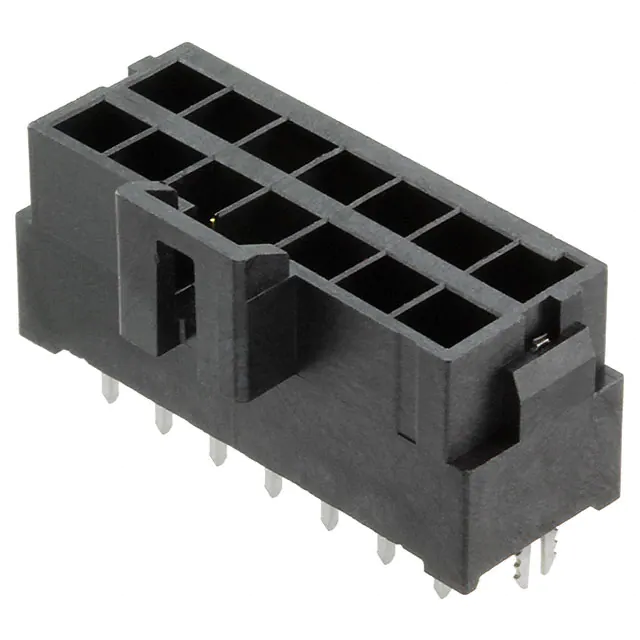

1722991314

1722991314
Molex
CONN HEADER VERT 14POS 3.5MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Type
Male Pin
Row Spacing - Mating
0.181" (4.60mm)
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
-
Contact Finish - Post
Tin
Features
Board Guide, Solder Retention
Ingress Protection
-
Current Rating (Amps)
-
Mfr
Molex
Series
Ultra-Fit 172299
Connector Type
Header
Number of Rows
2
Insulation Height
0.465" (11.80mm)
Style
Board to Cable/Wire
Mounting Type
Through Hole
Material Flammability Rating
UL94 V-0
Voltage Rating
400V
Number of Positions Loaded
All
Termination
Solder
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Material
Copper Alloy
Package
Bulk
Contact Shape
Square
Insulation Material
Liquid Crystal Polymer (LCP)
Insulation Color
Black
Contact Length - Post
0.126" (3.20mm)
Overall Contact Length
-
Contact Finish - Mating
Gold
Base Product Number
172299
Pitch - Mating
0.138" (3.50mm)
Number of Positions
14
Fastening Type
Latch Holder
Operating Temperature
-40°C ~ 120°C
Mated Stacking Heights
26.99mm
Applications
Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Product Status
Active
Contact Finish Thickness - Post
60.0µin (1.52µm)
