1724470004
1724470004
1724470004
1724470004
Favorite Products
Share:

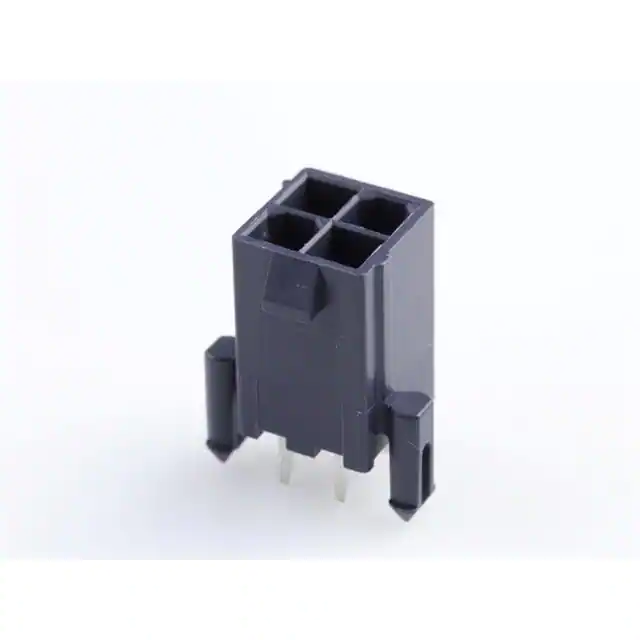

1724470004

1724470004
Molex
CONN HEADER VERT 4POS 4.2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Fastening Type
Locking Ramp
Mated Stacking Heights
-
Ingress Protection
-
Contact Shape
Square
Insulation Height
0.504" (12.80mm)
Contact Finish Thickness - Mating
100.0µin (2.54µm)
Insulation Material
Polyamide (PA), Nylon
Material Flammability Rating
UL94 V-2
Series
Mini-Fit Jr 172447
Contact Finish - Post
Tin
Number of Positions
4
Number of Positions Loaded
All
Voltage Rating
-
Product Status
Active
Style
Board to Cable/Wire
Current Rating (Amps)
-
Row Spacing - Mating
0.165" (4.20mm)
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Material
Brass
Contact Finish Thickness - Post
100.0µin (2.54µm)
Package
Tray
Termination
Solder
Features
Board Guide, Glow Wire Compliant
Base Product Number
172447
Connector Type
Header
Number of Rows
2
Shrouding
Shrouded - 4 Wall
Operating Temperature
-
Insulation Color
Black
Contact Type
Male Pin
Pitch - Mating
0.165" (4.20mm)
Mounting Type
Through Hole
Contact Length - Post
0.138" (3.50mm)
Applications
General Purpose, Industrial, Telecommunications
Mfr
Molex
Contact Length - Mating
-
