  6. 1761762001
1761762001
1761762001
1761762001
Favorite Products
Share:

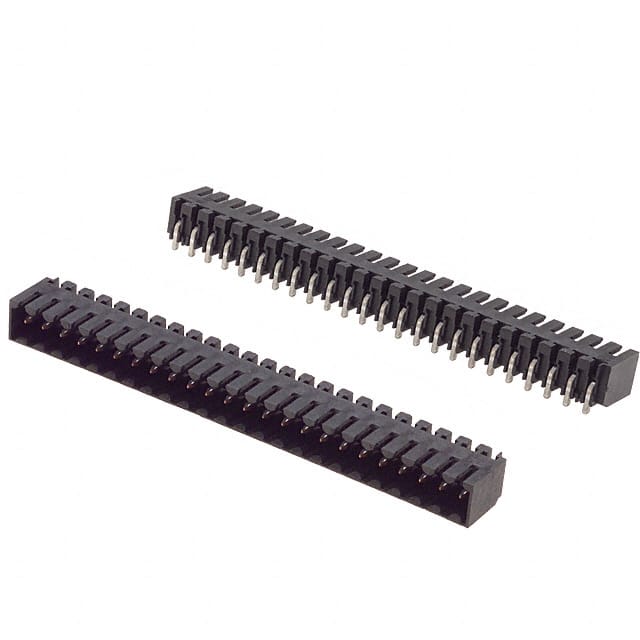

1761762001

1761762001
Weidmüller
TERM BLOCK HDR 24POS 90DEG 3.5MM
Headers, Plugs and Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Material Flammability Rating
UL94 V-0
Series
Omnimate SL
Product Status
Active
Positions Per Level
24
Wire Gauge or Range - AWG
-
Package
Bulk
Features
-
Screw Size
-
Insulation Height
0.293" (7.44mm)
Contact Mating Finish
Tin
Torque - Screw
-
Number of Positions
24
Color
Black
Type
Header, Male Pins, Shrouded (4 Side)
Header Orientation
90°, Right Angle
Termination Style
Solder
Mounting Type
Through Hole
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Contact Tail Length
0.059" (1.50mm)
Current - IEC
15A
Wire Gauge or Range - mm²
-
Operating Temperature
-50°C ~ 100°C
Plug Wire Entry
-
Ingress Protection
IP10
Number of Levels
1
Current - UL
10 A
Voltage - UL
300 V
Mfr
Weidmüller
Pitch
0.138" (3.50mm)
Voltage - IEC
320 V
Wire Strip Length
-
Contact Material
Copper Alloy
