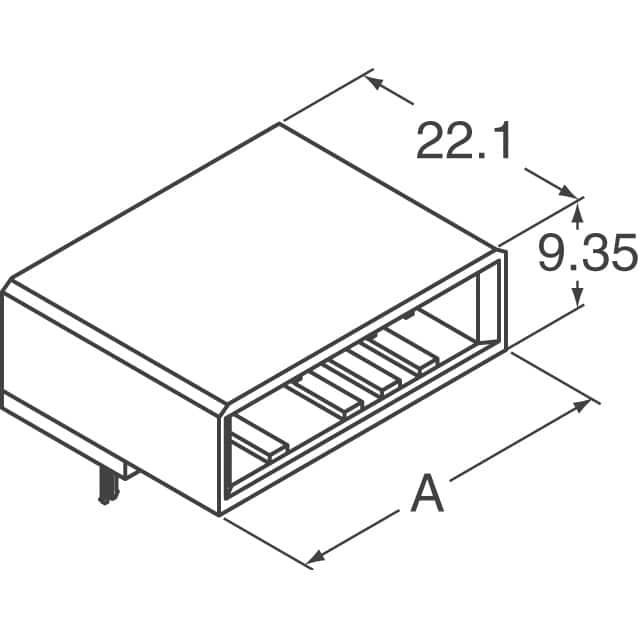

2-178293-5
2-178293-5
2-178293-5
Favorite Products
Share:

2-178293-5

2-178293-5
TE Connectivity AMP Connectors
CONN HEADER R/A 3POS 3.81MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Features
Board Lock
Material Flammability Rating
UL94 V-0
Fastening Type
Detent Lock
Shrouding
Shrouded - 4 Wall
Product Status
Active
Connector Type
Header
Number of Positions
3
Row Spacing - Mating
-
Termination
Solder
Contact Length - Mating
-
Contact Finish - Post
Tin
Contact Finish Thickness - Mating
78.7µin (2.00µm)
Package
Bulk
Style
Board to Board or Cable
Contact Length - Post
0.150" (3.81mm)
Insulation Height
0.368" (9.35mm)
Contact Material
Copper Alloy
Insulation Color
Black
Contact Finish Thickness - Post
-
Applications
General Purpose, Industrial
Number of Rows
1
Overall Contact Length
-
Contact Shape
Rectangular
Contact Finish - Mating
Tin
Ingress Protection
-
Voltage Rating
250V
Mated Stacking Heights
-
Mfr
TE Connectivity AMP Connectors
Series
Dynamic D-3100
Contact Type
Tab
Pitch - Mating
0.150" (3.81mm)
Base Product Number
178293
Operating Temperature
-55°C ~ 105°C
Number of Positions Loaded
All
Insulation Material
Thermoplastic, Polyester, Glass Filled
Current Rating (Amps)
-
Mounting Type
Through Hole, Right Angle
