2011970203
2011970203
Favorite Products
Share:

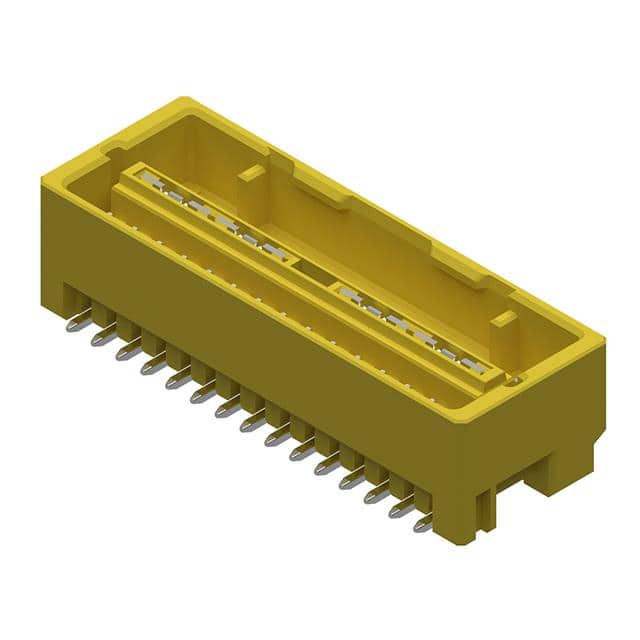

2011970203

2011970203
Molex
SPOT-ON 2.0 DR 201197 EMBSTP PKG
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mated Stacking Heights
-
Product Status
Active
Contact Finish Thickness - Mating
39.4µin (1.00µm)
Style
Board to Cable/Wire
Insulation Height
0.354" (9.00mm)
Applications
General Purpose
Pitch - Mating
0.079" (2.00mm)
Number of Rows
2
Number of Positions Loaded
All
Contact Length - Post
-
Overall Contact Length
-
Ingress Protection
-
Voltage Rating
250V
Base Product Number
201197
Operating Temperature
-40°C ~ 105°C
Mfr
Molex
Package
Tape & Reel (TR)
Contact Type
Male Pin
Shrouding
Shrouded - 4 Wall
Mounting Type
Surface Mount
Material Flammability Rating
UL94 V-0
Series
Spot-On 2.0 201197
Number of Positions
20
Fastening Type
Latch Holder
Insulation Material
Polyamide (PA), Nylon, Glass Filled
Features
Solder Retention
Contact Finish Thickness - Post
39.4µin (1.00µm)
Current Rating (Amps)
Varies by Wire Gauge
Connector Type
Header
Row Spacing - Mating
0.165" (4.20mm)
Contact Length - Mating
-
Contact Shape
Square
Contact Finish - Mating
Tin
Contact Material
Brass
Contact Finish - Post
Tin
Insulation Color
Yellow
Termination
Solder
