2016480081
2016480081
Favorite Products
Share:

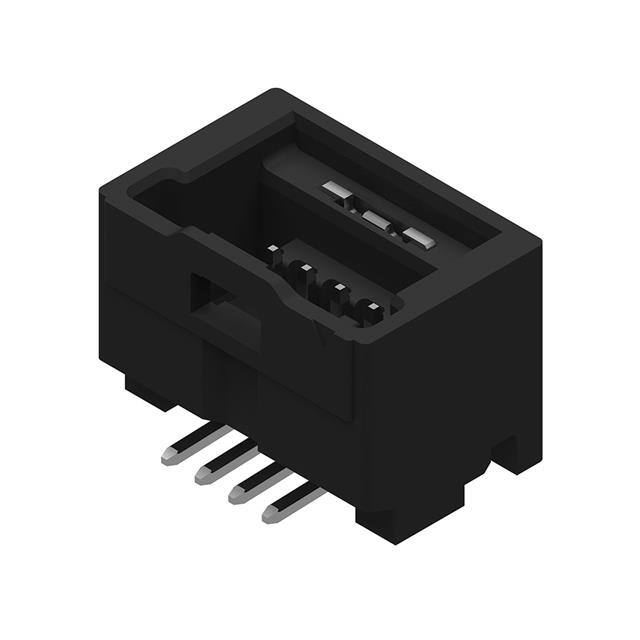

2016480081

2016480081
Molex
SPOT-ON 1.5 W/B SGL PLG ASSY BK
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Pitch - Mating
0.059" (1.50mm)
Mated Stacking Heights
-
Operating Temperature
-40°C ~ 105°C
Mfr
Molex
Contact Finish Thickness - Mating
39.4µin (1.00µm)
Insulation Material
Polyamide (PA), Nylon, Glass Filled
Contact Length - Post
-
Contact Shape
Square
Contact Finish - Mating
Tin
Features
Pick and Place, Solder Retention
Material Flammability Rating
UL94 V-0
Series
Spot-On 1.5 201648
Shrouding
Shrouded - 4 Wall
Insulation Height
0.354" (9.00mm)
Contact Finish - Post
Tin
Connector Type
Header
Fastening Type
Latch Holder
Voltage Rating
100V
Applications
General Purpose
Package
Tape & Reel (TR)^^Cut Tape (CT)
Contact Type
Male Pin
Number of Positions
8
Number of Positions Loaded
All
Termination
Solder
Ingress Protection
-
Current Rating (Amps)
Varies by Wire Gauge
Row Spacing - Mating
-
Style
Board to Cable/Wire
Contact Length - Mating
-
Overall Contact Length
-
Contact Finish Thickness - Post
39.4µin (1.00µm)
Base Product Number
201648
Product Status
Active
Number of Rows
1
Mounting Type
Surface Mount
Contact Material
Brass
Insulation Color
Black
