207526-2
207526-2
Favorite Products
Share:

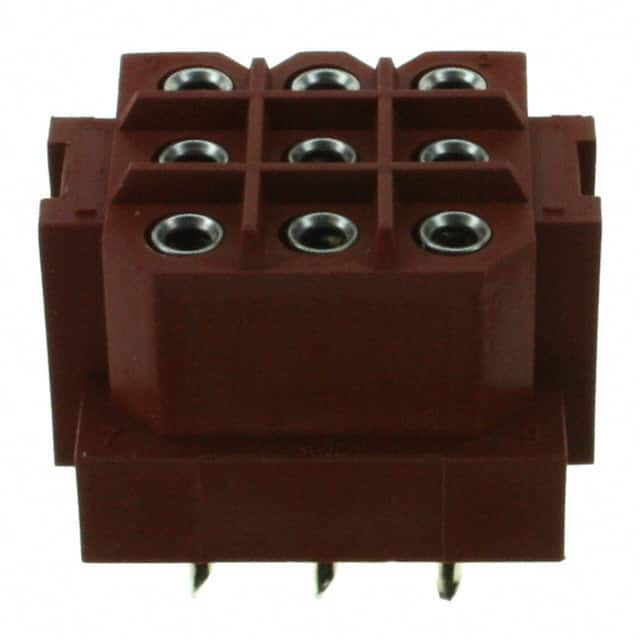

207526-2

207526-2
TE Connectivity AMP Connectors
CONN HDR 9POS 0.197 TIN-LEAD PCB
Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Pitch - Mating
0.197" (5.00mm)
Contact Finish - Mating
Tin-Lead
Insulation Height
0.565" (14.35mm)
Material Flammability Rating
UL94 V-0
Mounting Type
Through Hole
Product Status
Obsolete
Number of Positions
9
Insulation Color
Red
Operating Temperature
-55°C ~ 130°C
Insulation Material
Polyamide (PA), Nylon
Mfr
TE Connectivity AMP Connectors
Package
Tray
Contact Type
Female Socket
Contact Finish Thickness - Mating
150.0µin (3.81µm)
Connector Type
Header
Contact Finish - Post
Tin-Lead
Mated Stacking Heights
-
Features
-
Voltage Rating
600V
Fastening Type
Latch Holder
Ingress Protection
-
Contact Material
Phosphor Bronze
Style
Board to Cable/Wire
Number of Positions Loaded
All
Number of Rows
3
Applications
-
Contact Shape
Circular
Row Spacing - Mating
0.197" (5.00mm)
Termination
Solder
Current Rating (Amps)
7.5A
Base Product Number
207526
Series
Metrimate
Contact Length - Post
0.181" (4.60mm)
Contact Finish Thickness - Post
150.0µin (3.81µm)
