2157603007
2157603007
Favorite Products
Share:

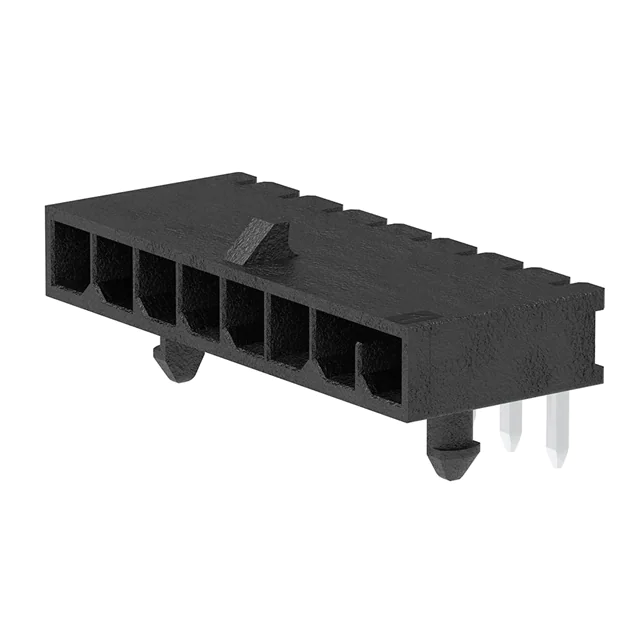

2157603007

2157603007
Molex
MICRO-FIT PLUS SR RA HDR ASSY 30
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Operating Temperature
-40°C ~ 105°C
Product Status
Active
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Number of Rows
1
Mounting Type
Through Hole, Right Angle
Number of Positions
7
Applications
-
Connector Type
Header
Style
Board to Cable/Wire
Termination
Solder
Fastening Type
Locking Ramp
Contact Finish - Post
Tin
Insulation Height
0.173" (4.40mm)
Contact Material
Copper Alloy
Contact Type
Male Pin
Number of Positions Loaded
All
Pitch - Mating
0.118" (3.00mm)
Row Spacing - Mating
-
Contact Finish Thickness - Mating
3.00µin (0.076µm)
Mfr
Molex
Overall Contact Length
-
Contact Shape
Square
Contact Finish - Mating
Gold
Contact Finish Thickness - Post
-
Contact Length - Post
0.125" (3.18mm)
Features
Board Lock, Glow Wire Compliant
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Mated Stacking Heights
-
Base Product Number
215760
Series
Micro-Fit+ 215760
Package
Tray
Contact Length - Mating
-
Voltage Rating
600VAC/DC
Shrouding
Shrouded - 4 Wall
Ingress Protection
-
Current Rating (Amps)
Varies by Wire Gauge
