2215-2X05G00DN-3U-P
2215-2X05G00DN-3U-P
Favorite Products
Share:

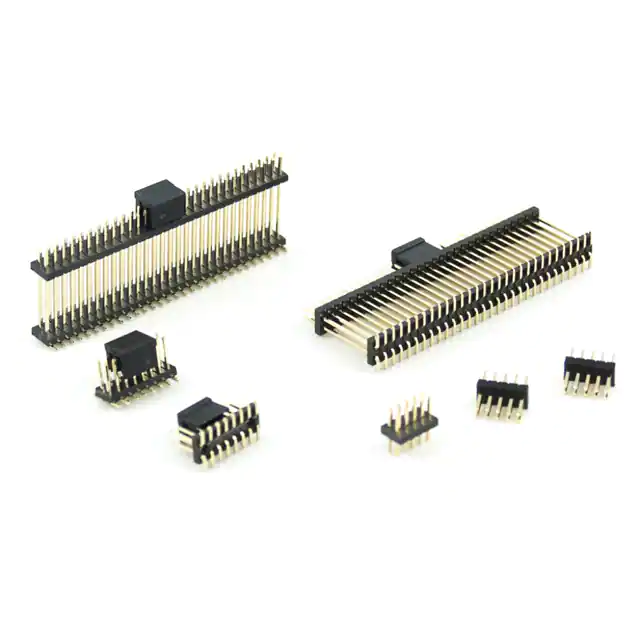

2215-2X05G00DN-3U-P

2215-2X05G00DN-3U-P
Oupiin
PIN HEADER, DOUBLE ROW, 10 PIN,
Headers, Male Pins
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Insulation Color
-
Contact Length - Post
-
Number of Positions Loaded
All
Shrouding
Unshrouded
Overall Contact Length
-
Ingress Protection
-
Contact Finish Thickness - Post
Flash
Fastening Type
Push-Pull
Contact Length - Mating
0.118" (3.00mm)
Contact Shape
Square
Insulation Material
Plastic
Operating Temperature
-40°C ~ 105°C
Material Flammability Rating
UL94 V-0
Voltage Rating
-
Mated Stacking Heights
-
Applications
-
Connector Type
Header
Termination
Solder
Contact Material
Copper Alloy
Features
Board Guide, Pick and Place
Product Status
Active
Contact Type
Male Pin
Number of Positions
10
Mounting Type
Surface Mount
Base Product Number
2215
Insulation Height
0.039" (1.00mm)
Package
Tube
Row Spacing - Mating
0.050" (1.27mm)
Style
Board to Board
Contact Finish - Mating
Gold
Mfr
Oupiin
Series
2215
Pitch - Mating
0.050" (1.27mm)
Contact Finish - Post
Gold
Current Rating (Amps)
1A
Number of Rows
2
Contact Finish Thickness - Mating
Flash
