2510-5003UB
2510-5003UB
Favorite Products
Share:

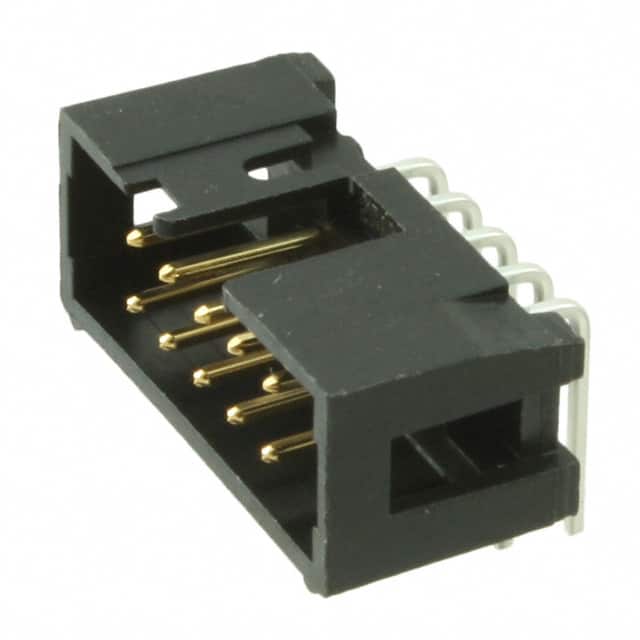

2510-5003UB

2510-5003UB
3M
CONN HEADER R/A 10POS 2.54MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Connector Type
Header
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Voltage Rating
-
Mounting Type
Through Hole, Right Angle
Fastening Type
Push-Pull
Contact Length - Mating
0.243" (6.17mm)
Features
Keying Slot
Operating Temperature
-55°C ~ 105°C
Mfr
3M
Product Status
Obsolete
Pitch - Mating
0.100" (2.54mm)
Contact Length - Post
0.155" (3.94mm)
Contact Shape
Square
Mated Stacking Heights
-
Style
Board to Board or Cable
Termination
Solder
Insulation Height
0.338" (8.59mm)
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Ingress Protection
-
Package
Bulk
Number of Rows
2
Series
2500
Number of Positions
10
Contact Finish - Post
Tin-Lead
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Current Rating (Amps)
1.75A
Contact Finish Thickness - Post
200.0µin (5.08µm)
Applications
-
Base Product Number
2510
Contact Type
Male Pin
Row Spacing - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Shrouding
Shrouded - 4 Wall
Contact Material
Copper Alloy
