2516-5003UB
2516-5003UB
Favorite Products
Share:

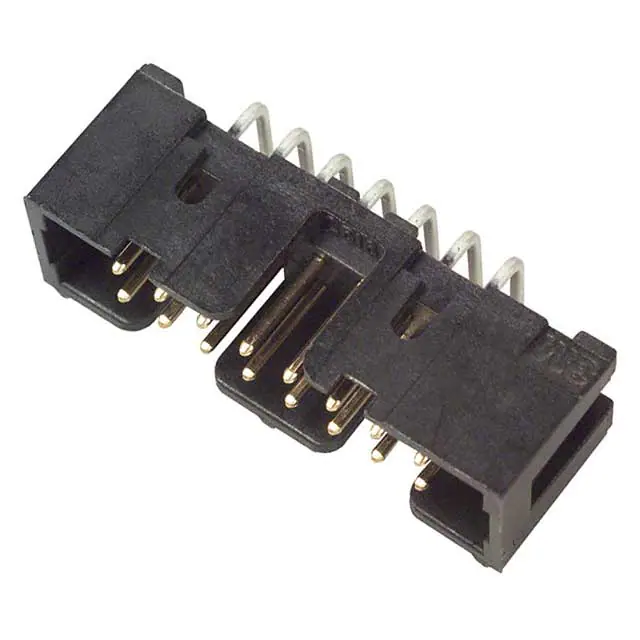

2516-5003UB

2516-5003UB
3M
CONN HEADER R/A 16POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mfr
3M
Voltage Rating
-
Base Product Number
2516
Number of Positions Loaded
All
Contact Shape
Square
Series
2500
Product Status
Obsolete
Contact Type
Male Pin
Mounting Type
Through Hole, Right Angle
Contact Length - Mating
0.243" (6.17mm)
Contact Material
Copper Alloy
Mated Stacking Heights
-
Package
Bulk
Row Spacing - Mating
0.100" (2.54mm)
Overall Contact Length
-
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
200.0µin (5.08µm)
Style
Board to Board or Cable
Insulation Height
0.338" (8.59mm)
Pitch - Mating
0.100" (2.54mm)
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Finish - Post
Tin-Lead
Operating Temperature
-55°C ~ 105°C
Number of Positions
16
Contact Length - Post
0.155" (3.94mm)
Insulation Color
Black
Connector Type
Header
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Current Rating (Amps)
1.75A
Shrouding
Shrouded - 4 Wall
Termination
Solder
Features
Keying Slot
Applications
-
Number of Rows
2
Fastening Type
Push-Pull
Ingress Protection
-
