2524-5002UG
2524-5002UG
Favorite Products
Share:

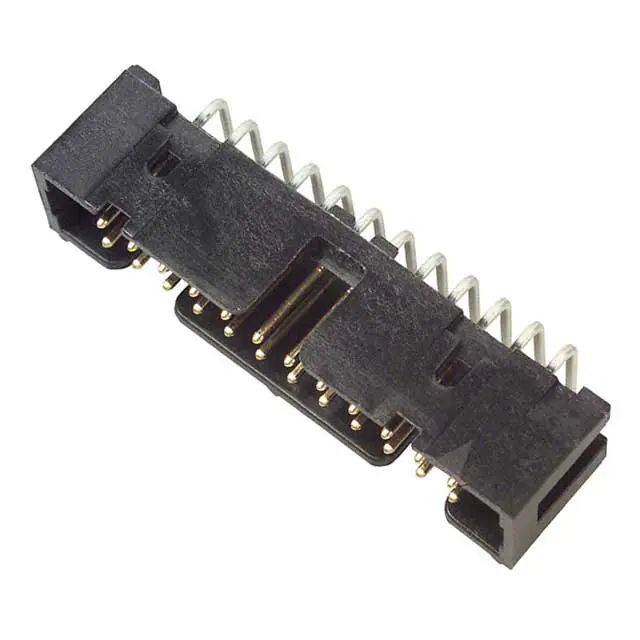

2524-5002UG

2524-5002UG
3M
CONN HEADER R/A 24POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish - Post
Tin-Lead
Contact Finish Thickness - Post
200.0µin (5.08µm)
Row Spacing - Mating
0.100" (2.54mm)
Contact Length - Mating
0.243" (6.17mm)
Insulation Color
Black
Package
Bulk
Product Status
Obsolete
Contact Type
Male Pin
Style
Board to Board or Cable
Shrouding
Shrouded - 4 Wall
Mounting Type
Through Hole, Right Angle
Termination
Solder
Fastening Type
Push-Pull
Applications
-
Number of Rows
2
Contact Length - Post
0.112" (2.84mm)
Mated Stacking Heights
-
Base Product Number
2524
Series
2500
Connector Type
Header
Insulation Height
0.338" (8.59mm)
Contact Finish - Mating
Gold
Features
Keying Slot
Ingress Protection
-
Contact Material
Copper Alloy
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
1.75A
Contact Shape
Square
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Number of Positions Loaded
All
Voltage Rating
-
Mfr
3M
Pitch - Mating
0.100" (2.54mm)
Overall Contact Length
-
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Operating Temperature
-55°C ~ 105°C
Number of Positions
24
