2540-5002UG
2540-5002UG
Favorite Products
Share:

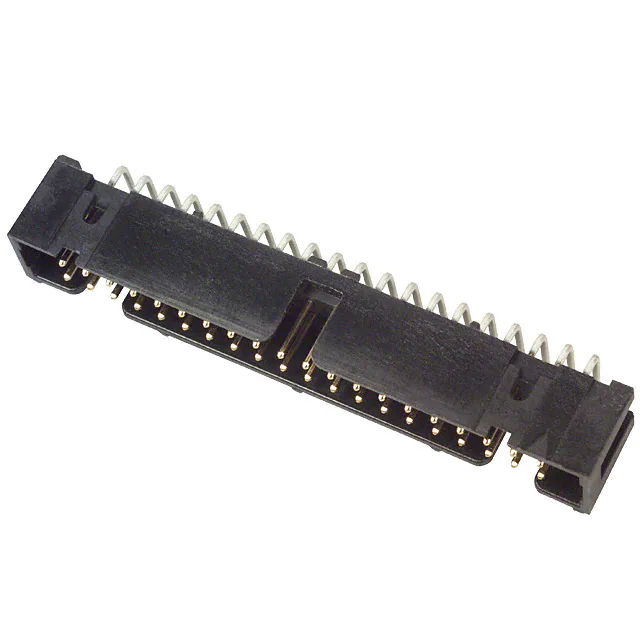

2540-5002UG

2540-5002UG
3M
CONN HEADER R/A 40POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mounting Type
Through Hole, Right Angle
Operating Temperature
-55°C ~ 105°C
Contact Material
Copper Alloy
Insulation Color
Black
Product Status
Obsolete
Contact Type
Male Pin
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish Thickness - Post
200.0µin (5.08µm)
Contact Length - Post
0.112" (2.84mm)
Material Flammability Rating
UL94 V-0
Shrouding
Shrouded - 4 Wall
Contact Finish - Post
Tin-Lead
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features
Keying Slot
Mfr
3M
Series
2500
Package
Bulk
Pitch - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Insulation Height
0.338" (8.59mm)
Ingress Protection
-
Connector Type
Header
Number of Positions
40
Number of Rows
2
Termination
Solder
Contact Length - Mating
0.243" (6.17mm)
Contact Shape
Square
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Mated Stacking Heights
-
Current Rating (Amps)
1.75A
Voltage Rating
-
Applications
-
Base Product Number
2540
Style
Board to Board or Cable
Fastening Type
Push-Pull
Overall Contact Length
-
Contact Finish - Mating
Gold
