3-292229-6
3-292229-6
Favorite Products
Share:

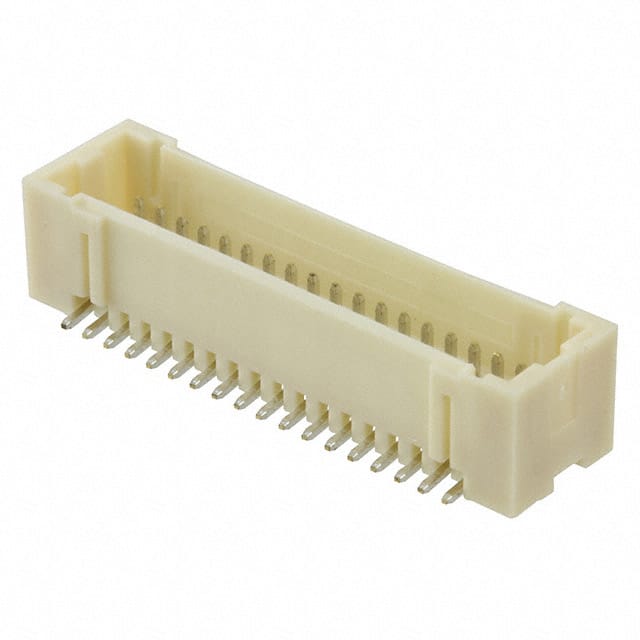

3-292229-6

3-292229-6
TE Connectivity AMP Connectors
CONN HEADER SMD 36POS 1.5MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Voltage Rating
50VAC
Package
Tape & Reel (TR)^^Cut Tape (CT)
Termination
Solder
Pitch - Mating
0.059" (1.50mm)
Insulation Height
0.291" (7.40mm)
Contact Finish - Mating
Tin
Applications
General Purpose
Series
Mini CT
Overall Contact Length
-
Insulation Material
Polyamide (PA), Nylon, Glass Filled
Insulation Color
Beige
Contact Finish Thickness - Post
-
Number of Rows
2
Contact Length - Post
-
Material Flammability Rating
UL94 V-0
Number of Positions
36
Row Spacing - Mating
0.079" (2.00mm)
Contact Material
Brass
Base Product Number
292229
Shrouding
Shrouded - 4 Wall
Contact Finish Thickness - Mating
-
Mated Stacking Heights
-
Mfr
TE Connectivity AMP Connectors
Connector Type
Header
Contact Type
Male Pin
Contact Shape
Square
Contact Finish - Post
Tin
Product Status
Active
Style
Board to Cable/Wire
Fastening Type
Detent Lock
Contact Length - Mating
0.114" (2.90mm)
Features
Board Guide
Operating Temperature
-30°C ~ 105°C
Ingress Protection
-
Number of Positions Loaded
All
Mounting Type
Surface Mount
Current Rating (Amps)
Varies by Wire Gauge
