3-794625-4
3-794625-4
Favorite Products
Share:

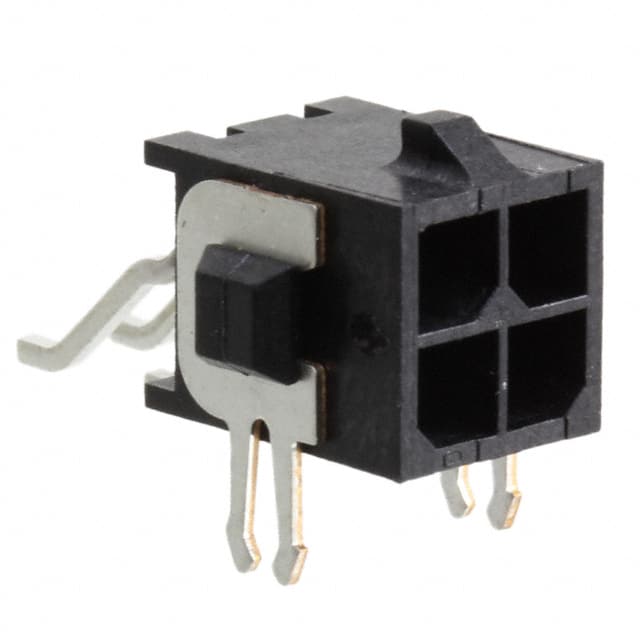

3-794625-4

3-794625-4
TE Connectivity AMP Connectors
CONN HEADER SMD R/A 4POS 3MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Style
Board to Cable/Wire
Material Flammability Rating
UL94 V-0
Series
Micro MATE-N-LOK
Termination
Solder
Fastening Type
Locking Ramp
Contact Length - Post
-
Contact Shape
Square
Insulation Color
Black
Package
Tape & Reel (TR)^^Cut Tape (CT)
Pitch - Mating
0.118" (3.00mm)
Contact Material
Brass
Mfr
TE Connectivity AMP Connectors
Mounting Type
Surface Mount, Right Angle
Contact Finish - Mating
Gold
Number of Rows
2
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Length - Mating
-
Current Rating (Amps)
Varies by Wire Gauge
Voltage Rating
250V
Product Status
Active
Contact Type
Male Pin
Row Spacing - Mating
0.118" (3.00mm)
Number of Positions Loaded
All
Contact Finish - Post
Tin
Applications
General Purpose
Base Product Number
794625
Insulation Height
0.290" (7.37mm)
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Insulation Material
Polyamide (PA), Nylon
Features
Board Lock
Connector Type
Header
Overall Contact Length
-
Operating Temperature
-40°C ~ 105°C
Number of Positions
4
Shrouding
Shrouded - 4 Wall
Ingress Protection
-
Mated Stacking Heights
-
