3020-20-0100-00
3020-20-0100-00
3020-20-0100-00
Favorite Products
Share:

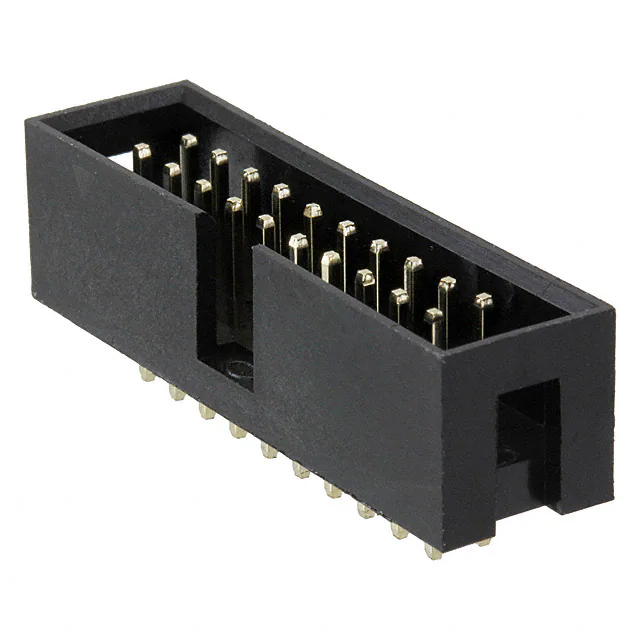

3020-20-0100-00

3020-20-0100-00
CNC Tech
CONN HEADER VERT 20POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mounting Type
Through Hole
Features
Keying Slot
Product Status
Active
Overall Contact Length
-
Insulation Height
0.354" (9.00mm)
Contact Finish Thickness - Mating
Flash
Contact Finish - Post
-
Operating Temperature
-40°C ~ 105°C
Contact Type
Male Pin
Contact Length - Mating
-
Contact Finish - Mating
Gold
Insulation Color
-
Insulation Material
Polyamide (PA6T), Nylon 6T; Polyamide (PA9T), Nylon 9T
Ingress Protection
-
Current Rating (Amps)
3A
Mated Stacking Heights
-
Series
-
Connector Type
Header
Material Flammability Rating
UL94 V-0
Applications
-
Mfr
CNC Tech
Package
Tray
Fastening Type
Push-Pull
Contact Material
Brass
Shrouding
Shrouded - 4 Wall
Voltage Rating
250VAC/DC
Contact Finish Thickness - Post
-
Row Spacing - Mating
0.100" (2.54mm)
Contact Shape
Square
Pitch - Mating
0.100" (2.54mm)
Number of Positions
20
Number of Positions Loaded
All
Termination
Solder
Contact Length - Post
0.118" (3.00mm)
Base Product Number
3020-20
Number of Rows
2
Style
Board to Cable/Wire
