30316-5002HB
30316-5002HB
30316-5002HB
Favorite Products
Share:

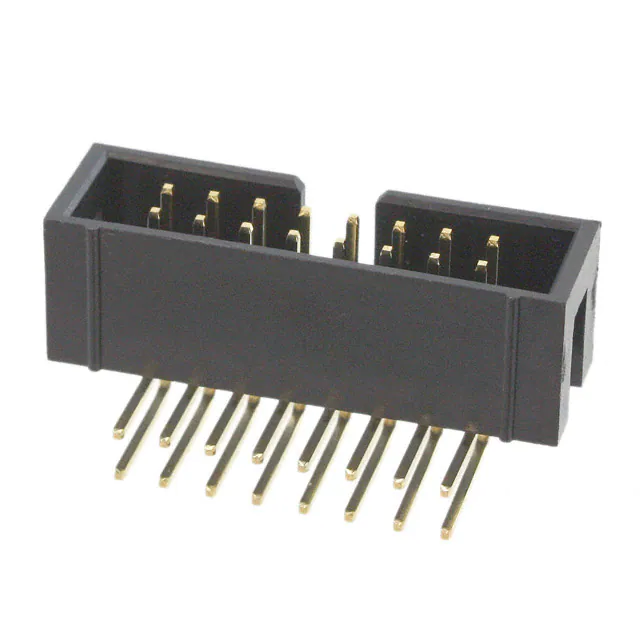

30316-5002HB

30316-5002HB
3M
CONN HEADER R/A 16POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Rows
2
Current Rating (Amps)
1A
Shrouding
Shrouded - 4 Wall
Applications
-
Pitch - Mating
0.100" (2.54mm)
Features
Keying Slot
Operating Temperature
-55°C ~ 105°C
Voltage Rating
-
Mated Stacking Heights
-
Mounting Type
Through Hole, Right Angle
Insulation Height
0.331" (8.40mm)
Contact Shape
Square
Contact Type
Male Pin
Contact Length - Mating
0.236" (6.00mm)
Contact Finish Thickness - Mating
Flash
Ingress Protection
-
Product Status
Active
Connector Type
Header
Row Spacing - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Style
Board to Board or Cable
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Package
Bulk
Contact Finish Thickness - Post
Flash
Series
303
Fastening Type
Push-Pull
Insulation Material
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Length - Post
0.110" (2.79mm)
Insulation Color
Black
Base Product Number
30316
Termination
Solder
Contact Finish - Post
Gold
Mfr
3M
Number of Positions
16
Overall Contact Length
-
Contact Material
Brass
