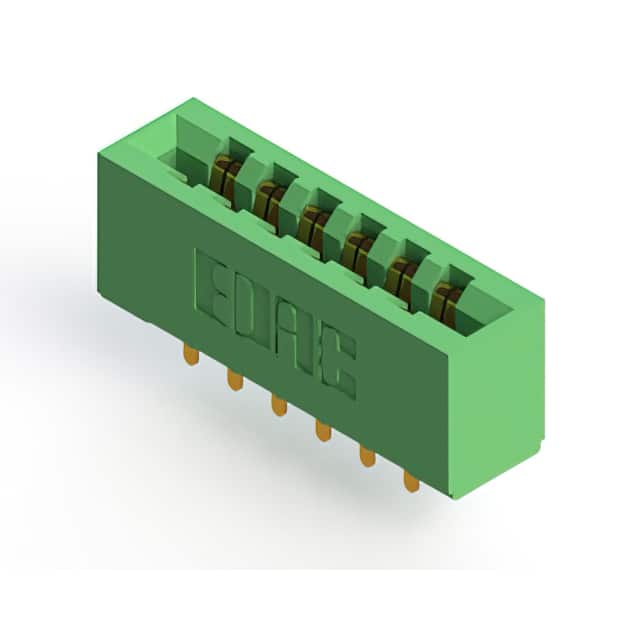

305-012-521-201
305-012-521-201
Favorite Products
Share:

305-012-521-201

305-012-521-201
EDAC Inc.
CONN EDGE DUAL FMALE 12POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Base Product Number
305-012
Card Type
Non Specified - Dual Edge
Number of Positions
12
Mfr
EDAC Inc.
Contact Finish Thickness
10.0µin (0.25µm)
Flange Feature
-
Series
305
Number of Positions/Bay/Row
6
Features
-
Gender
Female
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Pitch
0.156" (3.96mm)
Termination Rows
2
Contact Finish
Gold
Contact Type
Semi Bellows
Material - Insulation
Polyester Thermoplastic
Number of Rows
2
Read Out
Dual
Mounting Type
Through Hole
Contact Material
Copper Alloy
Color
Green
Package
Bulk
Product Status
Active
Termination
Solder
Operating Temperature
-40°C ~ 105°C
