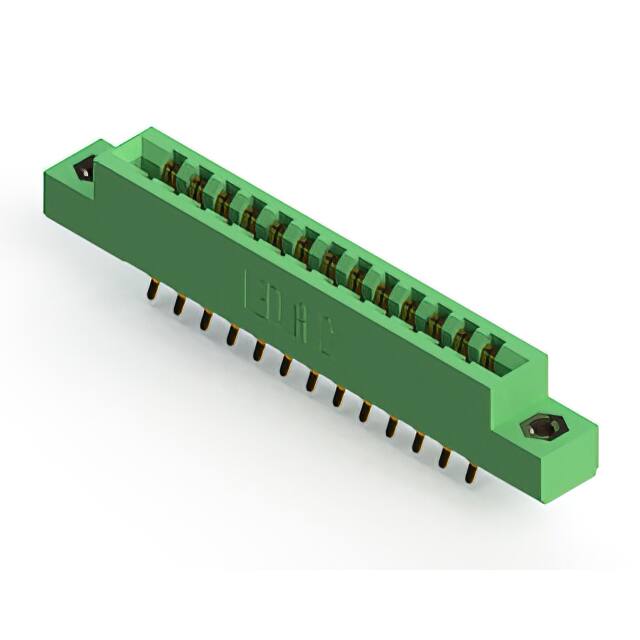

305-026-556-508
305-026-556-508
Favorite Products
Share:

305-026-556-508

305-026-556-508
EDAC Inc.
305 SERIES (.156" (3.96MM) CONTA
Card Edge Connectors - Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Series
305
Operating Temperature
-40°C ~ 105°C
Read Out
Dual
Material - Insulation
Polyester Thermoplastic
Termination Rows
2
Product Status
Active
Features
Card Extender
Contact Material
Copper Alloy
Contact Finish Thickness
10.0µin (0.25µm)
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Pitch
0.156" (3.96mm)
Mounting Type
Board Edge, Straddle Mount
Contact Type
Semi Bellows
Mfr
EDAC Inc.
Package
Box
Card Type
Non Specified - Dual Edge
Number of Rows
2
Color
Green
Base Product Number
305-026
Gender
Female
Number of Positions/Bay/Row
13
Number of Positions
26
Termination
Solder
Contact Finish
Gold
Flange Feature
Flush Mount, Top Opening, Threaded Insert, 4-40
