305-032-500-202
305-032-500-202
Favorite Products
Share:

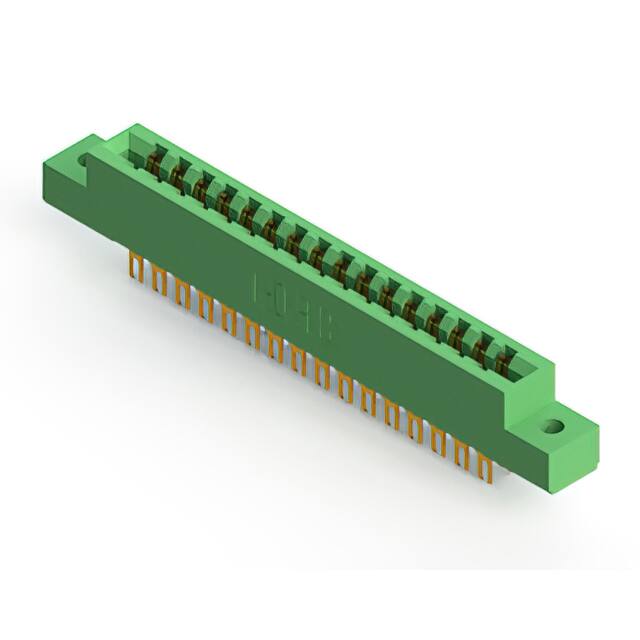

305-032-500-202

305-032-500-202
EDAC Inc.
CONN EDGE DUAL FMALE 32POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Base Product Number
305-032
Number of Positions
32
Pitch
0.156" (3.96mm)
Mounting Type
Panel Mount
Series
305
Number of Positions/Bay/Row
16
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Read Out
Dual
Features
-
Termination
Solder Eyelet(s)
Contact Type
Semi Bellows
Contact Material
Copper Alloy
Package
Box
Number of Rows
2
Contact Finish
Gold
Contact Finish Thickness
10.0µin (0.25µm)
Flange Feature
Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination Rows
2
Product Status
Active
Card Type
Non Specified - Dual Edge
Gender
Female
Operating Temperature
-40°C ~ 105°C
Material - Insulation
Polyester Thermoplastic
Mfr
EDAC Inc.
Color
Green
