305-044-500-501
305-044-500-501
Favorite Products
Share:

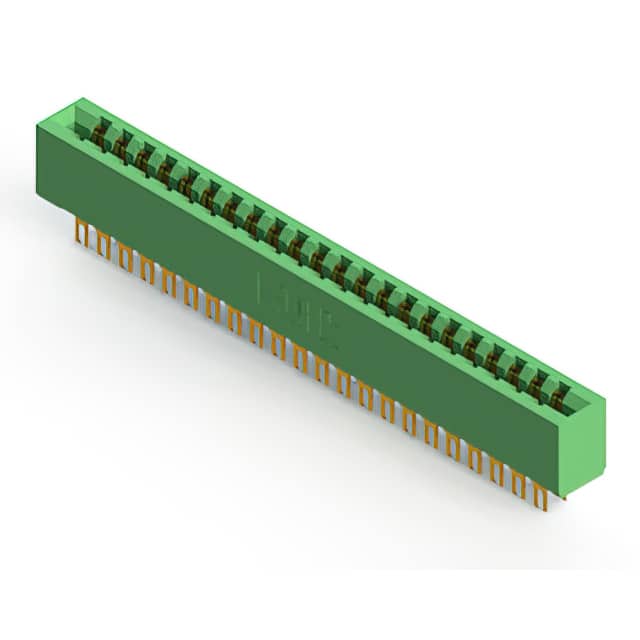

305-044-500-501

305-044-500-501
EDAC Inc.
CONN EDGE DUAL FMALE 44POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions/Bay/Row
22
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Finish Thickness
10.0µin (0.25µm)
Mfr
EDAC Inc.
Number of Positions
44
Mounting Type
Free Hanging (In-Line)
Read Out
Dual
Base Product Number
305-044
Card Type
Non Specified - Dual Edge
Termination
Solder Eyelet(s)
Contact Type
Semi Bellows
Package
Bulk
Gender
Female
Termination Rows
2
Number of Rows
2
Contact Material
Copper Alloy
Series
305
Color
Green
Material - Insulation
Polyester Thermoplastic
Product Status
Active
Features
-
Flange Feature
-
Pitch
0.156" (3.96mm)
Contact Finish
Gold
Operating Temperature
-40°C ~ 105°C
