305-044-520-507
305-044-520-507
Favorite Products
Share:

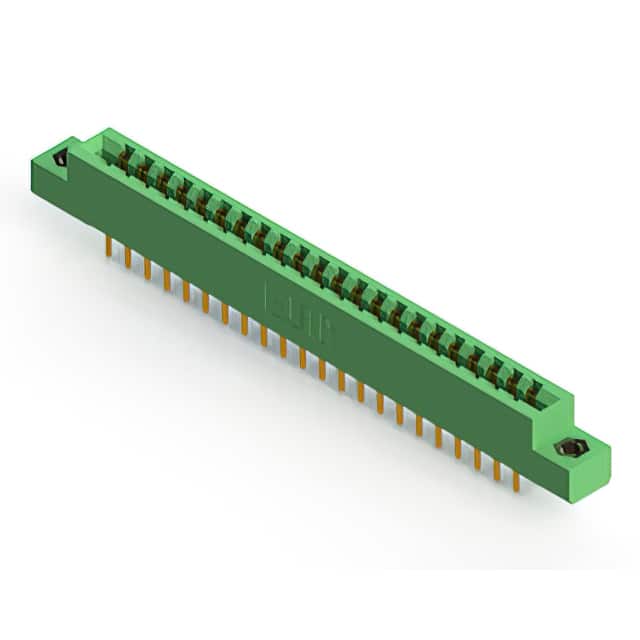

305-044-520-507

305-044-520-507
EDAC Inc.
CONN EDGE DUAL FMALE 44POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish
Gold
Card Type
Non Specified - Dual Edge
Number of Positions
44
Mounting Type
Panel Mount, Through Hole
Series
305
Contact Material
Copper Alloy
Number of Rows
2
Pitch
0.156" (3.96mm)
Features
-
Contact Finish Thickness
10.0µin (0.25µm)
Gender
Female
Mfr
EDAC Inc.
Package
Box
Number of Positions/Bay/Row
22
Operating Temperature
-40°C ~ 105°C
Flange Feature
Flush Mount, Top Opening, Threaded Insert, M3
Read Out
Dual
Contact Type
Semi Bellows
Termination Rows
2
Product Status
Active
Color
Green
Base Product Number
305-044
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Material - Insulation
Polyester Thermoplastic
Termination
Solder
