305-054-521-201
305-054-521-201
Favorite Products
Share:

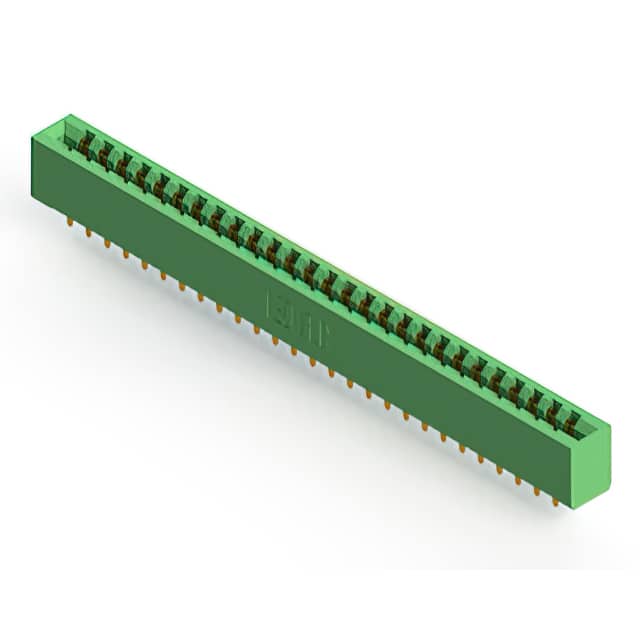

305-054-521-201

305-054-521-201
EDAC Inc.
CONN EDGE DUAL FMALE 54POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish Thickness
10.0µin (0.25µm)
Number of Positions/Bay/Row
27
Termination Rows
2
Product Status
Active
Flange Feature
-
Mfr
EDAC Inc.
Contact Finish
Gold
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows
2
Pitch
0.156" (3.96mm)
Termination
Solder
Color
Green
Series
305
Number of Positions
54
Base Product Number
305-054
Package
Box
Gender
Female
Contact Type
Semi Bellows
Operating Temperature
-40°C ~ 105°C
Card Type
Non Specified - Dual Edge
Read Out
Dual
Mounting Type
Through Hole
Contact Material
Copper Alloy
Features
-
Material - Insulation
Polyester Thermoplastic
