305-062-556-204
305-062-556-204
Favorite Products
Share:

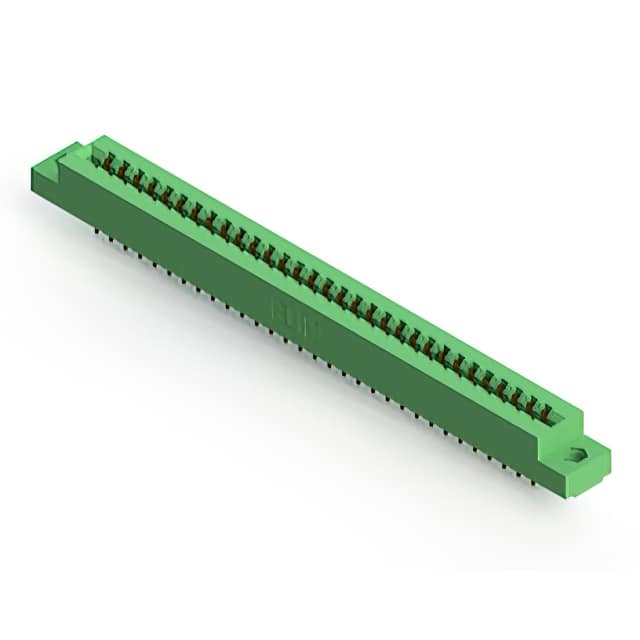

305-062-556-204

305-062-556-204
EDAC Inc.
CONN EDGE DUAL FMALE 62POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Base Product Number
305-062
Mounting Type
Board Edge, Straddle Mount
Pitch
0.156" (3.96mm)
Operating Temperature
-40°C ~ 105°C
Mfr
EDAC Inc.
Package
Box
Gender
Female
Features
Card Extender
Flange Feature
Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Series
305
Card Type
Non Specified - Dual Edge
Read Out
Dual
Color
Green
Product Status
Active
Termination
Solder
Termination Rows
2
Contact Material
Copper Alloy
Number of Positions/Bay/Row
31
Number of Positions
62
Contact Finish
Gold
Contact Finish Thickness
10.0µin (0.25µm)
Material - Insulation
Polyester Thermoplastic
Number of Rows
2
Contact Type
Semi Bellows
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
