305-070-521-203
305-070-521-203
Favorite Products
Share:

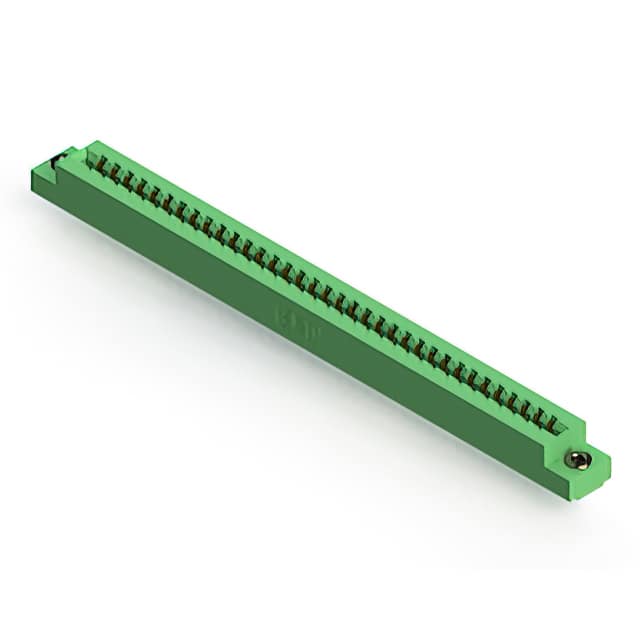

305-070-521-203

305-070-521-203
EDAC Inc.
CONN EDGE DUAL FMALE 70POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mounting Type
Panel Mount, Through Hole
Contact Finish
Gold
Termination
Solder
Contact Material
Copper Alloy
Contact Finish Thickness
10.0µin (0.25µm)
Termination Rows
2
Color
Green
Card Type
Non Specified - Dual Edge
Gender
Female
Features
-
Number of Positions/Bay/Row
35
Operating Temperature
-40°C ~ 105°C
Series
305
Number of Positions
70
Number of Rows
2
Pitch
0.156" (3.96mm)
Read Out
Dual
Base Product Number
305-070
Contact Type
Semi Bellows
Flange Feature
Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Material - Insulation
Polyester Thermoplastic
Package
Box
Mfr
EDAC Inc.
Product Status
Active
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
