305-070-555-512
305-070-555-512
Favorite Products
Share:

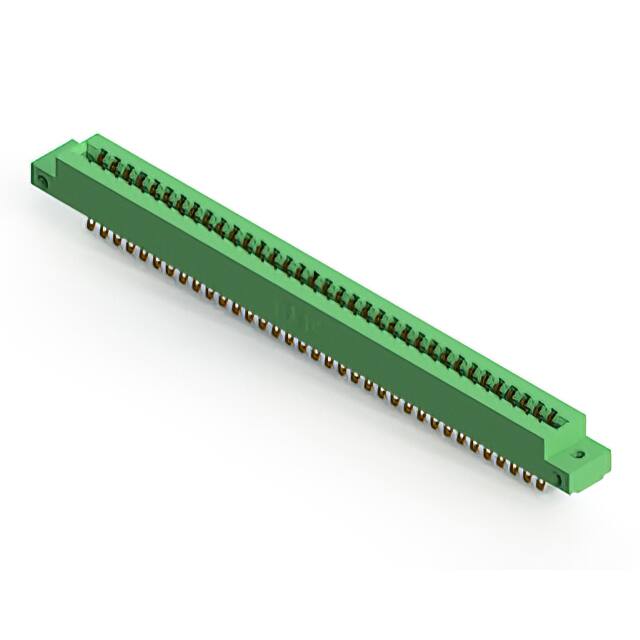

305-070-555-512

305-070-555-512
EDAC Inc.
CONN EDGE DUAL FMALE 70POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish
Gold
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Read Out
Dual
Contact Finish Thickness
10.0µin (0.25µm)
Termination
Solder
Flange Feature
Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Mfr
EDAC Inc.
Number of Positions/Bay/Row
35
Material - Insulation
Polyester Thermoplastic
Series
305
Package
Bulk
Product Status
Active
Pitch
0.156" (3.96mm)
Features
Card Extender
Card Type
Non Specified - Dual Edge
Contact Material
Copper Alloy
Color
Green
Operating Temperature
-40°C ~ 105°C
Number of Positions
70
Contact Type
Semi Bellows
Gender
Female
Number of Rows
2
Mounting Type
Board Edge, Straddle Mount
Termination Rows
2
