306-033-521-103
306-033-521-103
Favorite Products
Share:

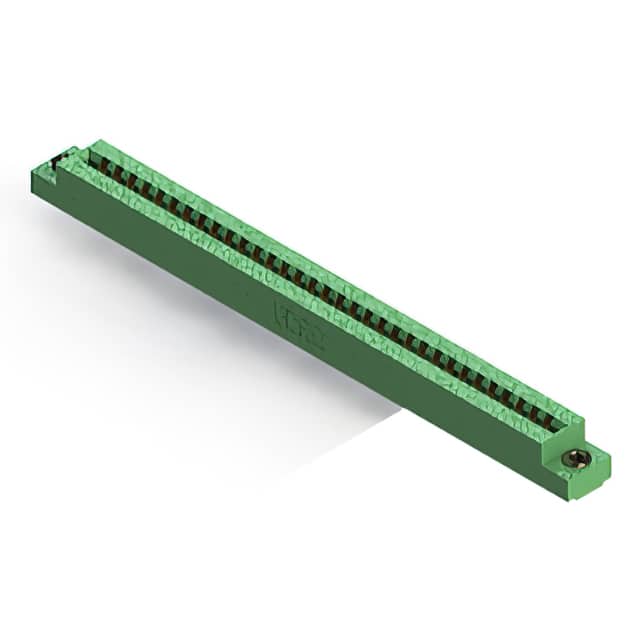

306-033-521-103

306-033-521-103
EDAC Inc.
CONN EDGE DUAL FMALE 66POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Read Out
Dual
Termination
Solder
Contact Finish
Gold
Termination Rows
1
Gender
Female
Mounting Type
Panel Mount, Through Hole
Series
306
Product Status
Active
Number of Positions
66
Contact Material
Copper Alloy
Base Product Number
306-033
Card Type
Non Specified - Dual Edge
Pitch
0.156" (3.96mm)
Mfr
EDAC Inc.
Features
-
Contact Finish Thickness
10.0µin (0.25µm)
Flange Feature
Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature
-40°C ~ 105°C
Material - Insulation
Polyester Thermoplastic
Number of Positions/Bay/Row
33
Number of Rows
2
Contact Type
Cantilever
Package
Box
Color
Green
