307-009-547-101
307-009-547-101
Favorite Products
Share:

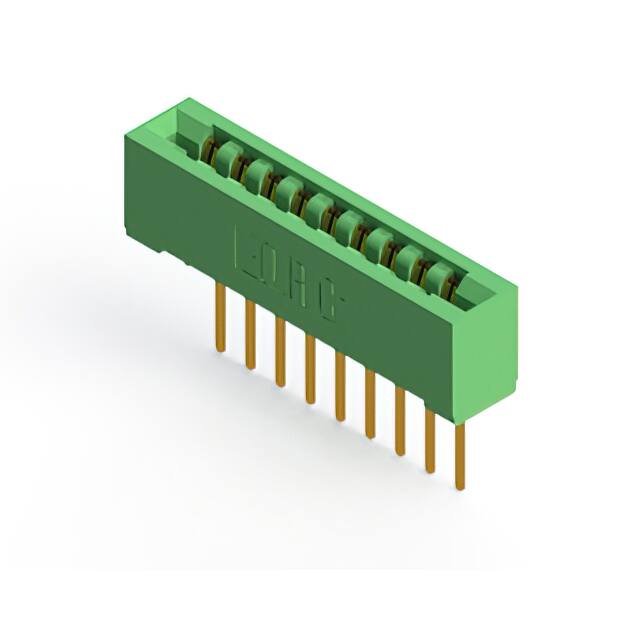

307-009-547-101

307-009-547-101
EDAC Inc.
CONN EDGE SGL FMALE 9POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish Thickness
10.0µin (0.25µm)
Flange Feature
-
Number of Rows
1
Operating Temperature
-40°C ~ 105°C
Material - Insulation
Polyester Thermoplastic
Series
307
Product Status
Active
Termination
Wire Wrap
Gender
Female
Number of Positions/Bay/Row
9
Contact Material
Copper Alloy
Termination Rows
1
Base Product Number
307-009
Card Type
Non Specified - Single Edge
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Features
-
Mounting Type
Through Hole
Mfr
EDAC Inc.
Package
Box
Read Out
Single
Contact Finish
Gold
Contact Type
Semi Bellows
Color
Green
Number of Positions
9
Pitch
0.156" (3.96mm)
