307-011-421-168
307-011-421-168
Favorite Products
Share:

307-011-421-168

307-011-421-168
EDAC Inc.
CONN EDGE DUAL FMALE 22POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Base Product Number
307-011
Operating Temperature
-40°C ~ 105°C
Package
Bulk
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Color
Green
Read Out
Dual
Contact Type
Semi Bellows
Flange Feature
Flush Mount, Top Opening, Threaded Insert, 4-40
Number of Positions/Bay/Row
11
Pitch
0.156" (3.96mm)
Contact Finish
Tin
Card Type
Non Specified - Dual Edge
Mounting Type
Through Hole
Contact Finish Thickness
-
Series
307
Number of Positions
22
Number of Rows
2
Contact Material
Copper Alloy
Features
Card Guides
Termination
Solder
Termination Rows
1
Mfr
EDAC Inc.
Product Status
Active
Gender
Female
Material - Insulation
Polyester Thermoplastic
Related Products
846-013-559-678

EDAC Inc.
RSA24DRMH

Sullins Connector Solutions

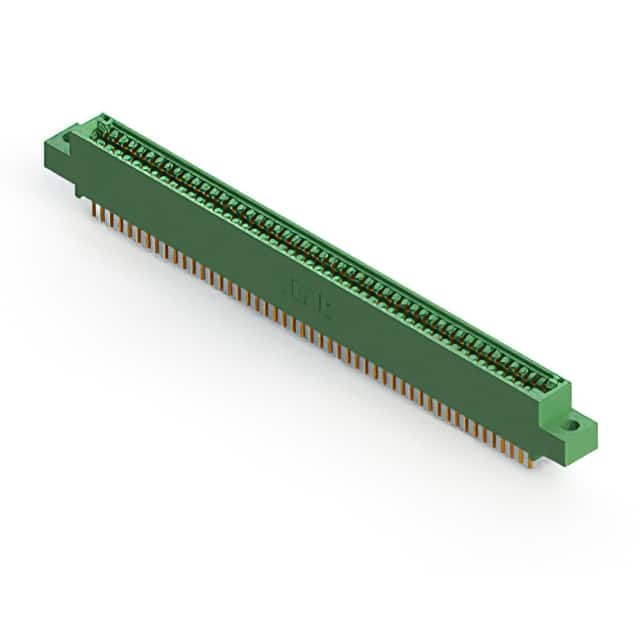

345-098-542-504

EDAC Inc.

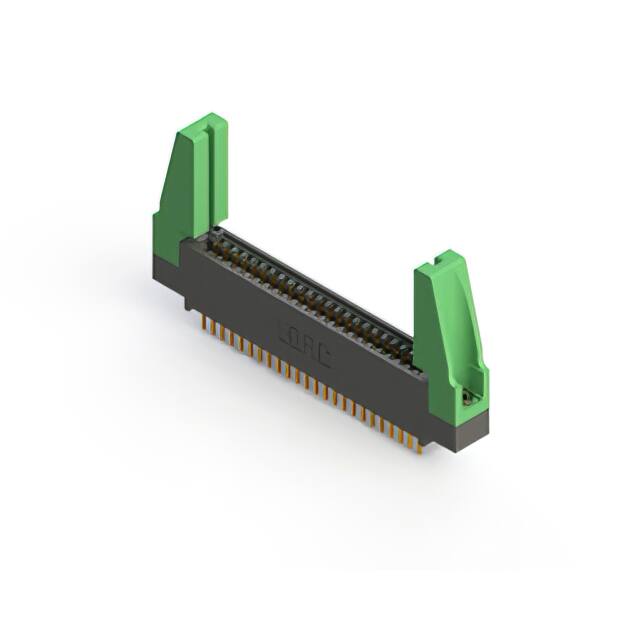

395-048-541-588
