307-013-421-103
307-013-421-103
Favorite Products
Share:

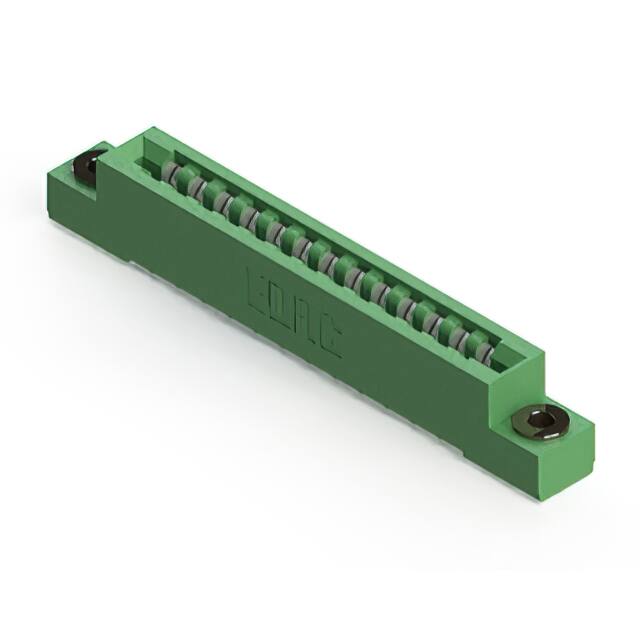

307-013-421-103

307-013-421-103
EDAC Inc.
CONN EDGE DUAL FMALE 26POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Package
Bulk
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Gender
Female
Read Out
Dual
Series
307
Number of Positions
26
Contact Material
Copper Alloy
Card Type
Non Specified - Dual Edge
Contact Type
Semi Bellows
Flange Feature
Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination
Solder
Termination Rows
1
Operating Temperature
-40°C ~ 105°C
Features
-
Color
Green
Base Product Number
307-013
Number of Positions/Bay/Row
13
Material - Insulation
Polyester Thermoplastic
Pitch
0.156" (3.96mm)
Mounting Type
Through Hole
Contact Finish
Tin
Mfr
EDAC Inc.
Product Status
Active
Number of Rows
2
Contact Finish Thickness
-
