307-016-558-112
307-016-558-112
Favorite Products
Share:

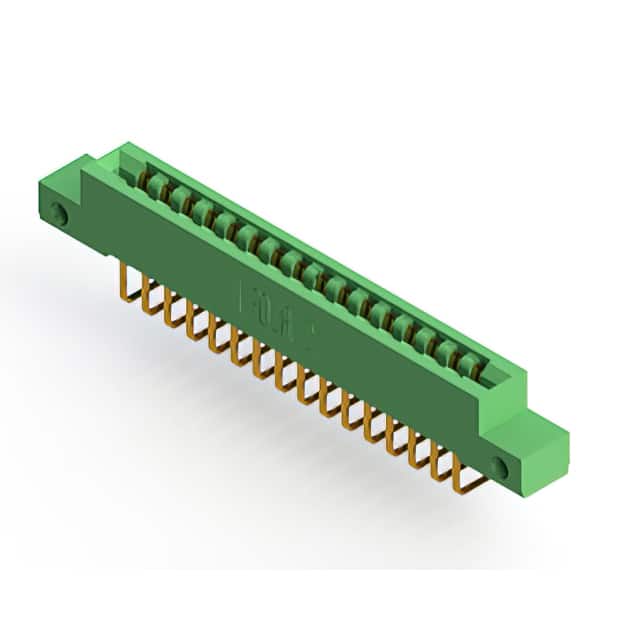

307-016-558-112

307-016-558-112
EDAC Inc.
CONN EDGE SGL FMALE 16POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Base Product Number
307-016
Mounting Type
Through Hole, Right Angle
Gender
Female
Features
-
Flange Feature
Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Number of Positions/Bay/Row
16
Contact Finish Thickness
10.0µin (0.25µm)
Termination Rows
1
Series
307
Read Out
Single
Product Status
Active
Card Type
Non Specified - Single Edge
Number of Positions
16
Termination
Solder
Contact Finish
Gold
Contact Type
Semi Bellows
Package
Box
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Material
Copper Alloy
Operating Temperature
-40°C ~ 105°C
Mfr
EDAC Inc.
Number of Rows
1
Pitch
0.156" (3.96mm)
Color
Green
Material - Insulation
Polyester Thermoplastic
