307-036-558-107
307-036-558-107
Favorite Products
Share:

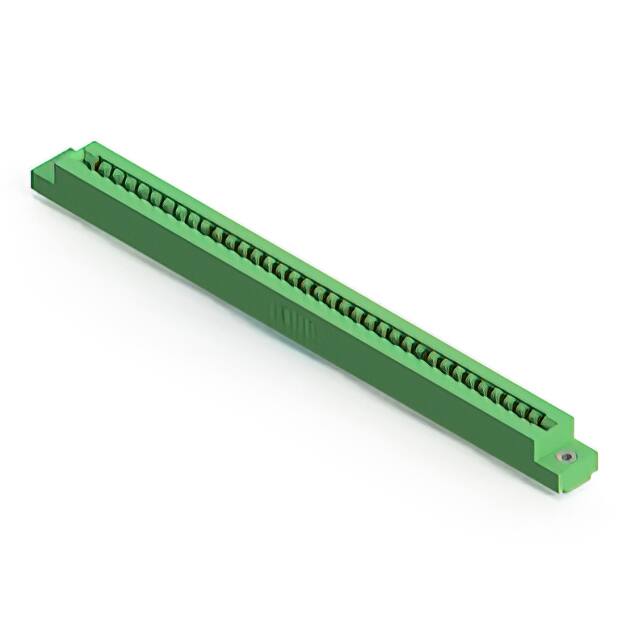

307-036-558-107

307-036-558-107
EDAC Inc.
CONN EDGE SGL FMALE 36POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Read Out
Single
Product Status
Active
Number of Positions
36
Termination
Solder
Material - Insulation
Polyester Thermoplastic
Series
307
Number of Rows
1
Pitch
0.156" (3.96mm)
Contact Finish
Gold
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Finish Thickness
10.0µin (0.25µm)
Operating Temperature
-40°C ~ 105°C
Features
-
Mounting Type
Through Hole, Right Angle
Contact Material
Copper Alloy
Color
Green
Flange Feature
Flush Mount, Top Opening, Threaded Insert, M3
Mfr
EDAC Inc.
Package
Box
Card Type
Non Specified - Single Edge
Gender
Female
Contact Type
Semi Bellows
Number of Positions/Bay/Row
36
Termination Rows
1
Base Product Number
307-036
