307-054-522-202
307-054-522-202
Favorite Products
Share:

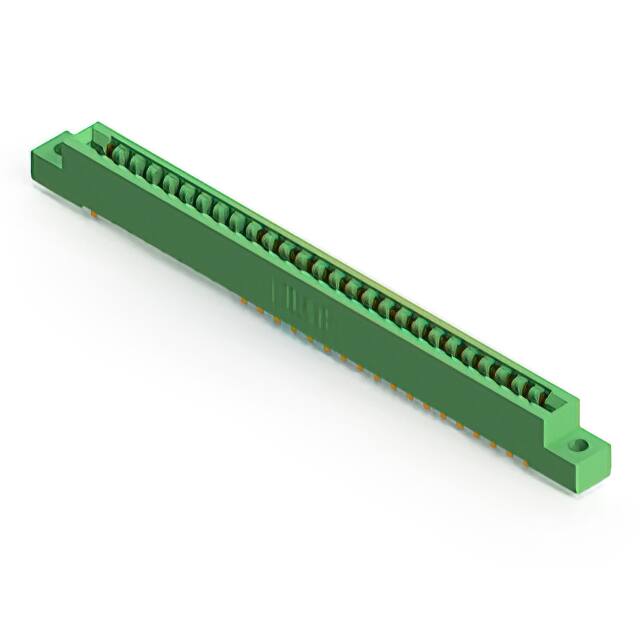

307-054-522-202

307-054-522-202
EDAC Inc.
CONN EDGE DUAL FMALE 54POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Card Type
Non Specified - Dual Edge
Contact Material
Copper Alloy
Series
307
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Type
Semi Bellows
Termination Rows
2
Package
Box
Contact Finish
Gold
Mounting Type
Through Hole
Termination
Solder
Contact Finish Thickness
10.0µin (0.25µm)
Gender
Female
Number of Positions/Bay/Row
27
Number of Rows
2
Mfr
EDAC Inc.
Number of Positions
54
Flange Feature
Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Read Out
Dual
Features
-
Color
Green
Operating Temperature
-40°C ~ 105°C
Base Product Number
307-054
Product Status
Active
Pitch
0.156" (3.96mm)
Material - Insulation
Polyester Thermoplastic
