316-036-520-103
316-036-520-103
Favorite Products
Share:

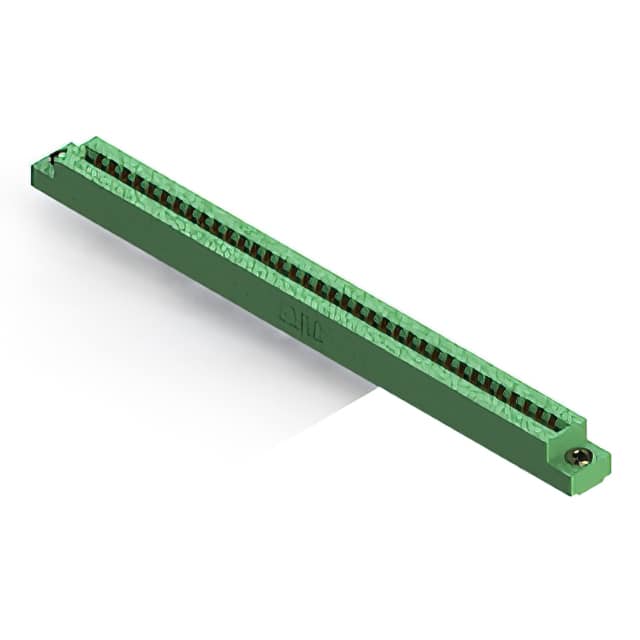

316-036-520-103

316-036-520-103
EDAC Inc.
CONN EDGE DUAL FMALE 72POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mounting Type
Panel Mount, Through Hole
Number of Positions
72
Contact Type
Cantilever
Card Type
Non Specified - Dual Edge
Series
316
Termination Rows
1
Product Status
Active
Number of Positions/Bay/Row
36
Contact Finish Thickness
10.0µin (0.25µm)
Material - Insulation
Polyester Thermoplastic
Features
-
Flange Feature
Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Mfr
EDAC Inc.
Gender
Female
Pitch
0.156" (3.96mm)
Contact Finish
Gold
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Base Product Number
316-036
Contact Material
Copper Alloy
Color
Green
Read Out
Dual
Package
Box
Number of Rows
2
Termination
Solder
Operating Temperature
-40°C ~ 105°C
