317-015-542-604
317-015-542-604
Favorite Products
Share:

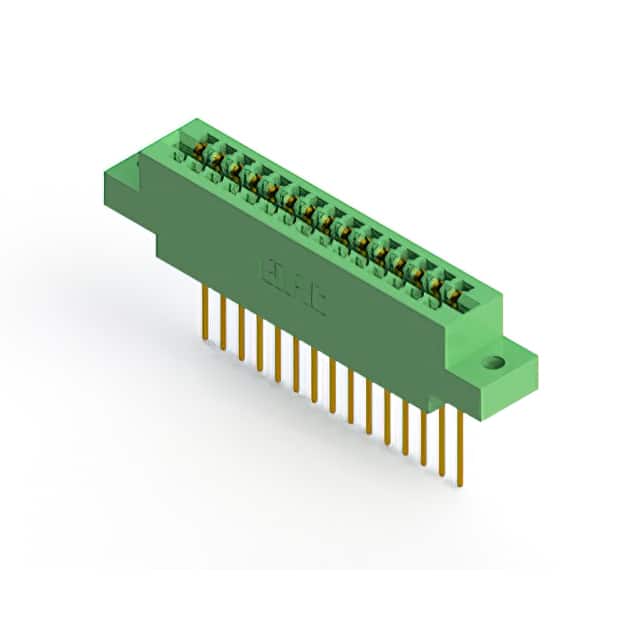

317-015-542-604

317-015-542-604
EDAC Inc.
317 SERIES (.156" (3.96MM) CONTA
Edgeboard Connectors
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Type
Cantilever with Back-Up Spring
Package
Bulk
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination
Wire Wrap
Contact Material
Copper Alloy
Material - Insulation
Diallyl Phthalate (DAP)
Mfr
EDAC Inc.
Contact Finish
Gold
Termination Rows
1
Base Product Number
317-015
Contact Finish Thickness
10.0µin (0.25µm)
Operating Temperature
-65°C ~ 125°C
Mounting Type
Through Hole
Color
Green
Flange Feature
Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Card Type
Non Specified - Single Edge
Number of Positions
15
Number of Rows
1
Features
-
Product Status
Active
Number of Positions/Bay/Row
15
Series
317
Pitch
0.156" (3.96mm)
Gender
Female
Read Out
Single
