336-017-541-602
336-017-541-602
Favorite Products
Share:

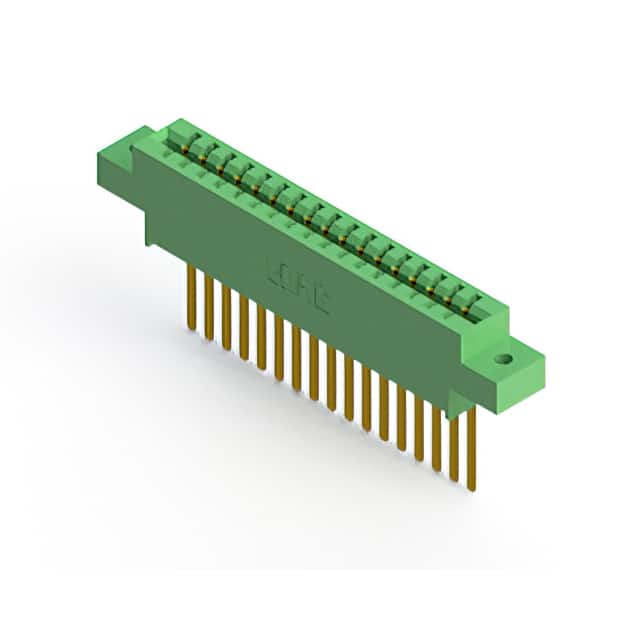

336-017-541-602

336-017-541-602
EDAC Inc.
336 SERIES (.156" (3.96MM) CONTA
Edgeboard Connectors
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination
Wire Wrap
Mounting Type
Through Hole
Package
Bulk
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Product Status
Active
Number of Positions/Bay/Row
17
Number of Positions
17
Base Product Number
336-017
Series
336
Contact Finish Thickness
10.0µin (0.25µm)
Pitch
0.156" (3.96mm)
Read Out
Single
Material - Insulation
Diallyl Phthalate (DAP)
Number of Rows
1
Contact Type
Cantilever
Flange Feature
Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination Rows
1
Mfr
EDAC Inc.
Gender
Female
Features
-
Operating Temperature
-65°C ~ 125°C
Card Type
Non Specified - Single Edge
Contact Material
Copper Alloy
Contact Finish
Gold
Color
Green
