336-019-541-607
336-019-541-607
Favorite Products
Share:

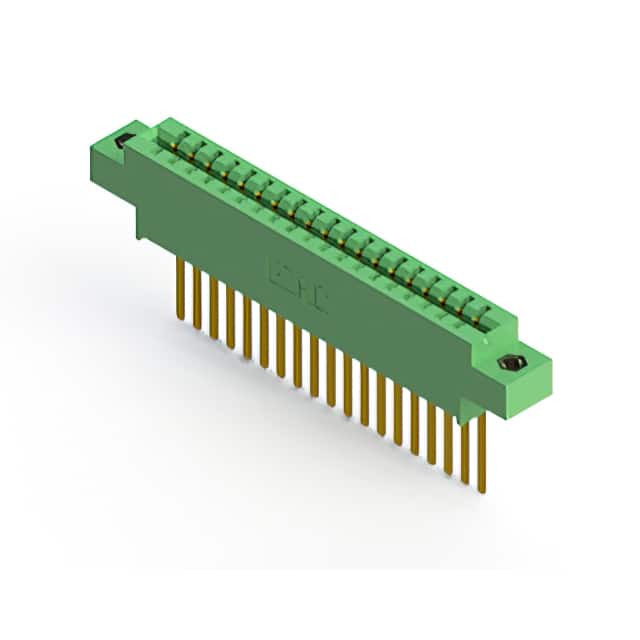

336-019-541-607

336-019-541-607
EDAC Inc.
336 SERIES (.156" (3.96MM) CONTA
Edgeboard Connectors
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Pitch
0.156" (3.96mm)
Mounting Type
Through Hole
Mfr
EDAC Inc.
Series
336
Package
Bulk
Number of Positions
19
Contact Finish Thickness
10.0µin (0.25µm)
Termination Rows
1
Number of Rows
1
Material - Insulation
Diallyl Phthalate (DAP)
Card Type
Non Specified - Single Edge
Contact Type
Cantilever
Operating Temperature
-65°C ~ 125°C
Base Product Number
336-019
Gender
Female
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Material
Copper Alloy
Flange Feature
Top Mount Opening, Threaded Insert, M3
Number of Positions/Bay/Row
19
Product Status
Active
Features
-
Read Out
Single
Termination
Wire Wrap
Contact Finish
Gold
Color
Green
