336-020-541-809
336-020-541-809
Favorite Products
Share:

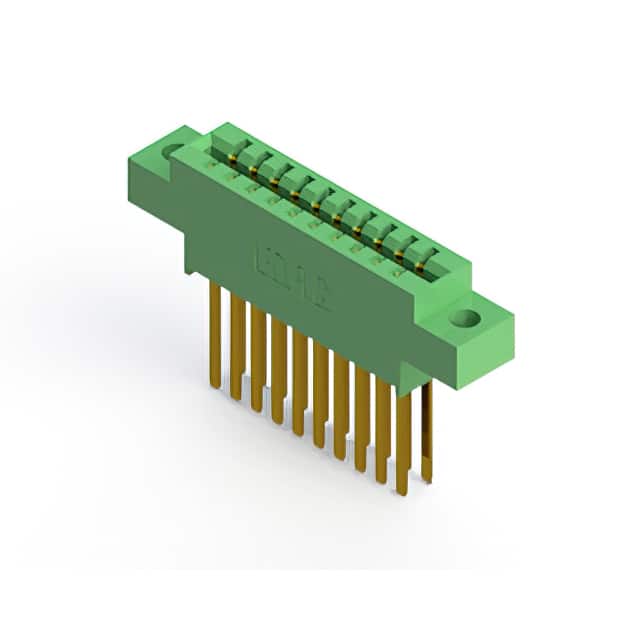

336-020-541-809

336-020-541-809
EDAC Inc.
336 SERIES (.156" (3.96MM) CONTA
Edgeboard Connectors
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mfr
EDAC Inc.
Termination
Wire Wrap
Product Status
Active
Number of Positions
20
Number of Rows
2
Flange Feature
Top Mount Opening, Unthreaded, 0.178" (4.52mm) Dia
Read Out
Dual
Mounting Type
Through Hole
Contact Material
Copper Alloy
Series
336
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Finish
Gold
Contact Type
Cantilever
Color
Green
Number of Positions/Bay/Row
10
Base Product Number
336-020
Pitch
0.156" (3.96mm)
Operating Temperature
-65°C ~ 125°C
Card Type
Non Specified - Dual Edge
Features
-
Material - Insulation
Diallyl Phthalate (DAP)
Termination Rows
2
Package
Bulk
Gender
Female
Contact Finish Thickness
10.0µin (0.25µm)
